Home / Products / Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single / RW1C026ZPT2CR

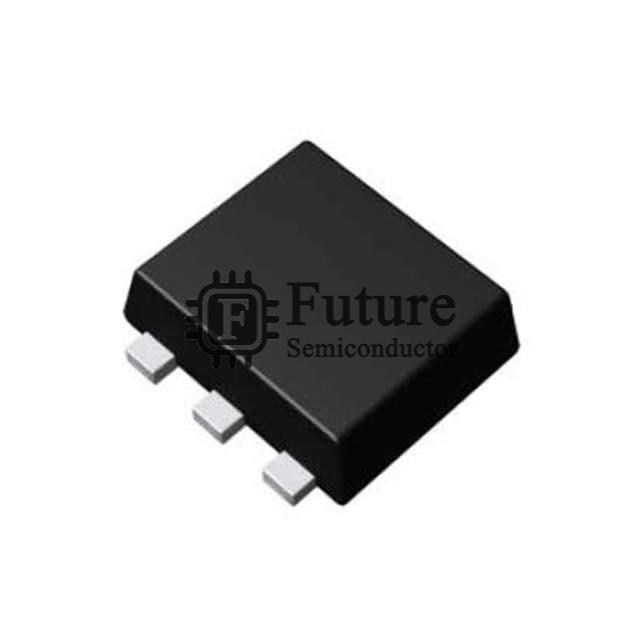

Manufacturer Part Number | RW1C026ZPT2CR |
---|---|
Future Part Number | FT-RW1C026ZPT2CR |
SPQ / MOQ | Contact Us |
Packing Material | Reel/Tray/Tube/Others |
Series | - |
RW1C026ZPT2CR Status (Lifecycle) | In Stock |
Part Status | Not For New Designs |
FET Type | P-Channel |
Technology | MOSFET (Metal Oxide) |
Drain to Source Voltage (Vdss) | 20V |
Current - Continuous Drain (Id) @ 25°C | 2.5A (Ta) |
Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
Rds On (Max) @ Id, Vgs | 70 mOhm @ 2.5A, 4.5V |
Vgs(th) (Max) @ Id | 1V @ 1mA |
Gate Charge (Qg) (Max) @ Vgs | 10nC @ 4.5V |
Vgs (Max) | ±10V |
Input Capacitance (Ciss) (Max) @ Vds | 1250pF @ 10V |
FET Feature | - |
Power Dissipation (Max) | 700mW (Ta) |
Operating Temperature | 150°C (TJ) |
Mounting Type | Surface Mount |
Supplier Device Package | 6-WEMT |
Package / Case | SOT-563, SOT-666 |
Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
RW1C026ZPT2CR Weight | Contact Us |
Replacement Part Number | RW1C026ZPT2CR-FT |
