Richtek USA Inc. RT9715FGQW

Name: RT9715FGQW
Brand: Richtek USA Inc.
SKU: RT9715FGQW
Availability: InStock
Rating: 4.7 (59 reviews)

MFG Part Number: RT9715FGQW

Available Quantity: 12550 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Richtek USA Inc.

Brief Description: - IC PWR SWITCH USB 1.1A 8WDFN

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: PMIC - Power Distribution Switches, Load Drivers

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: RT9715FGQW.pdf

RT9715FGQW Specifications

Manufacturer Part Number	RT9715FGQW
Future Part Number	FT-RT9715FGQW
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
RT9715FGQW Status (Lifecycle)	In Stock
Part Status	Obsolete
Switch Type	USB Switch
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	2.7V ~ 5.5V
Voltage - Supply (Vcc/Vdd)	Not Required
Current - Output (Max)	1.1A
Rds On (Typ)	90 mOhm
Input Type	Non-Inverting
Features	Load Discharge, Status Flag
Fault Protection	Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature	-40°C ~ 100°C (TJ)

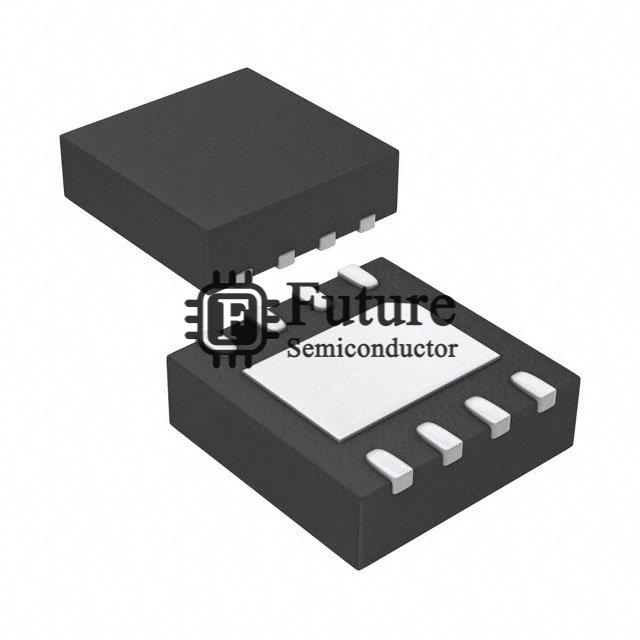

Package / Case	8-WDFN Exposed Pad
Supplier Device Package	8-WDFN (3x3)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
RT9715FGQW Weight	Contact Us
Replacement Part Number	RT9715FGQW-FT
