Home / Products / Filters / Common Mode Chokes / RN102-1-02-3M0

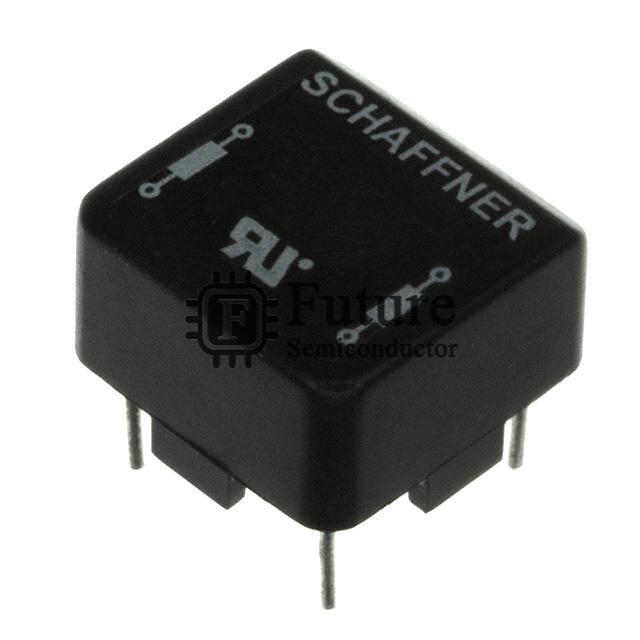

RN102-1-02-3M0 Image

Schaffner EMC Inc. RN102-1-02-3M0

MFG Part Number
RN102-1-02-3M0
Available Quantity
89040 Pieces
Reference Price
USD 1.36
Our Price
We have a big discount, please contact us
Shipping Date
We can ship out today
Manufacturer
Schaffner EMC Inc.
Brief Description
RN CMC 3MH 1A 2LN TH
Lead Free Status / RoHS Status
RoHS Compliant (Lead Free)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Date Code (D/C)
New
Product Category
Common Mode Chokes
Stock Resource
Franchised Distributor
Warranty
360 days quality guarantee
Datasheet
RN102-1-02-3M0.pdf
RN102-1-02-3M0 Image

Request Quotation for RN102-1-02-3M0

Company Name
Contact Person
Phone Number
Address
Email
Message

RN102-1-02-3M0 Specifications

Manufacturer Part Number RN102-1-02-3M0
Future Part Number FT-RN102-1-02-3M0
SPQ / MOQ Contact Us
Packing Material Reel/Tray/Tube/Others
Series RN
RN102-1-02-3M0 Status (Lifecycle) In Stock
Part Status Active
Filter Type Power Line
Number of Lines 2
Impedance @ Frequency -
Inductance @ Frequency 3mH @ 10kHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 210 mOhm (Typ)
Voltage Rating - DC -
Voltage Rating - AC 300V
Operating Temperature -40°C ~ 100°C
Ratings -
Approvals ENEC, UR, VDE
Features -
Mounting Type Through Hole
Size / Dimension 0.551" Dia x 0.551" W (14.00mm x 14.00mm)
Height (Max) 0.366" (9.30mm)
Package / Case Horizontal, 4 PC Pin
Country of Origin USA/JAPAN/MALAYSIA/MEXICO/CN
RN102-1-02-3M0 Weight Contact Us
Replacement Part Number RN102-1-02-3M0-FT
