Home / Products / Discrete Semiconductor Products / Transistors - IGBTs - Single / RGTV60TS65DGC11

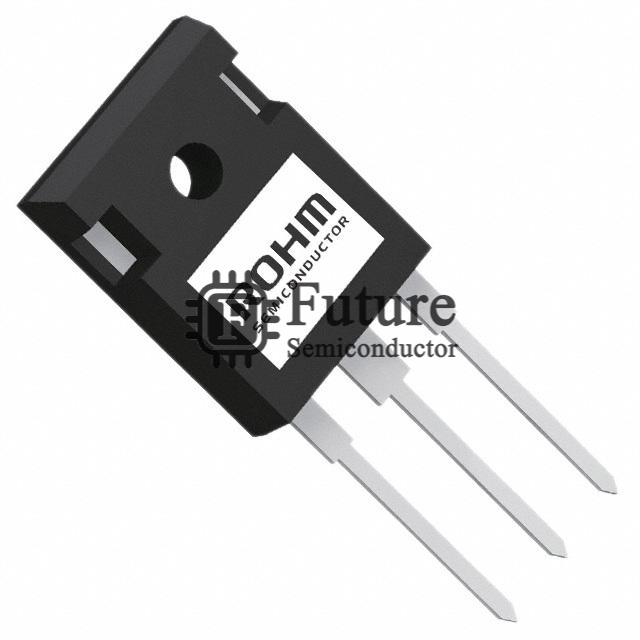

Rohm Semiconductor RGTV60TS65DGC11
- MFG Part Number
- RGTV60TS65DGC11
- Available Quantity
- 97190 Pieces
- Reference Price
- USD 4.44
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Rohm Semiconductor
- Brief Description
- - 650V 30A FIELD STOP TRENCH IGBT
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Transistors - IGBTs - Single
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- RGTV60TS65DGC11.pdf
RGTV60TS65DGC11 Specifications
| Manufacturer Part Number | RGTV60TS65DGC11 |
|---|---|
| Future Part Number | FT-RGTV60TS65DGC11 |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | - |
| RGTV60TS65DGC11 Status (Lifecycle) | In Stock |
| Part Status | Active |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 650V |
| Current - Collector (Ic) (Max) | 60A |
| Current - Collector Pulsed (Icm) | 120A |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 15V, 30A |
| Power - Max | 194W |
| Switching Energy | 570µJ (on), 500µJ (off) |
| Input Type | Standard |
| Gate Charge | 64nC |
| Td (on/off) @ 25°C | 33ns/105ns |
| Test Condition | 400V, 30A, 10 Ohm, 15V |
| Reverse Recovery Time (trr) | 95ns |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247N |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| RGTV60TS65DGC11 Weight | Contact Us |
| Replacement Part Number | RGTV60TS65DGC11-FT |
