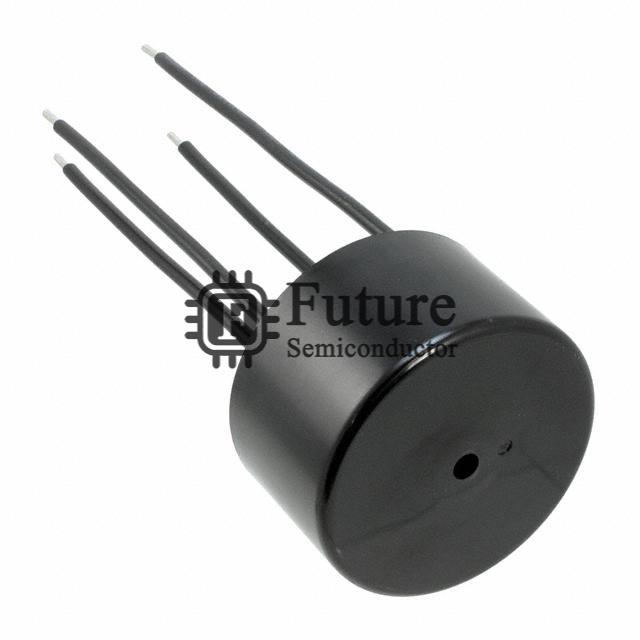

RD7127-25-2M8 Image

Schaffner EMC Inc. RD7127-25-2M8

MFG Part Number
RD7127-25-2M8
Available Quantity
84250 Pieces
Reference Price
USD 16.84
Our Price
We have a big discount, please contact us
Shipping Date
We can ship out today
Manufacturer
Schaffner EMC Inc.
Brief Description
RD CMC 2.8MH 25A 2LN TH
Lead Free Status / RoHS Status
RoHS Compliant (Lead Free)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Date Code (D/C)
New
Product Category
Common Mode Chokes
Stock Resource
Franchised Distributor
Warranty
360 days quality guarantee
Datasheet
RD7127-25-2M8.pdf
RD7127-25-2M8 Image

Request Quotation for RD7127-25-2M8

Company Name
Contact Person
Phone Number
Address
Email
Message

RD7127-25-2M8 Specifications

Manufacturer Part Number RD7127-25-2M8
Future Part Number FT-RD7127-25-2M8
SPQ / MOQ Contact Us
Packing Material Reel/Tray/Tube/Others
Series RD
RD7127-25-2M8 Status (Lifecycle) In Stock
Part Status Active
Filter Type Power Line
Number of Lines 2
Impedance @ Frequency -
Inductance @ Frequency 2.8mH @ 400Hz
Current Rating (Max) 25A (Typ)
DC Resistance (DCR) (Max) 6.4 mOhm (Typ)
Voltage Rating - DC 850V
Voltage Rating - AC 600V
Operating Temperature -25°C ~ 110°C
Ratings -
Approvals -
Features -
Mounting Type Through Hole
Size / Dimension 2.756" L x 2.756" W (70.00mm x 70.00mm)
Height (Max) 1.594" (40.50mm)
Package / Case Horizontal, 4 PC Pin
Country of Origin USA/JAPAN/MALAYSIA/MEXICO/CN
RD7127-25-2M8 Weight Contact Us
Replacement Part Number RD7127-25-2M8-FT
