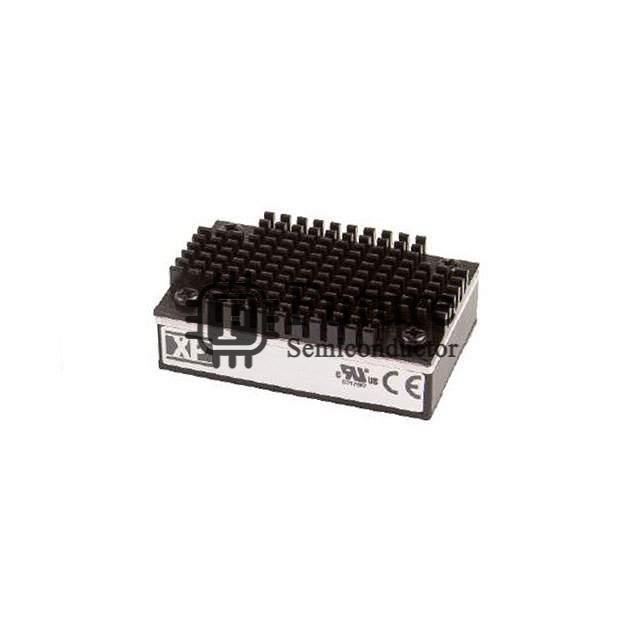

Manufacturer Part Number | RCQ50110S12 |
---|---|
Future Part Number | FT-RCQ50110S12 |
SPQ / MOQ | Contact Us |
Packing Material | Reel/Tray/Tube/Others |
Series | RCQ (50W) |
RCQ50110S12 Status (Lifecycle) | In Stock |
Part Status | Active |
Type | Isolated Module |
Number of Outputs | 1 |
Voltage - Input (Min) | 66V |
Voltage - Input (Max) | 160V |
Voltage - Output 1 | 12V |
Voltage - Output 2 | - |
Voltage - Output 3 | - |
Voltage - Output 4 | - |
Current - Output (Max) | 4.17A |
Power (Watts) | 50W |
Voltage - Isolation | 3kV |
Applications | ITE (Commercial), Railway |
Features | Remote On/Off |
Operating Temperature | -40°C ~ 35°C |
Efficiency | 91% |
Mounting Type | Through Hole |
Package / Case | 8-DIP Module |
Size / Dimension | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) |
Supplier Device Package | - |
Control Features | Enable, Active High |
Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
RCQ50110S12 Weight | Contact Us |
Replacement Part Number | RCQ50110S12-FT |
