Home / Products / Circuit Protection / TVS - Diodes / RCLAMP0564P.TNT
Manufacturer Part Number | RCLAMP0564P.TNT |
---|---|
Future Part Number | FT-RCLAMP0564P.TNT |
SPQ / MOQ | Contact Us |
Packing Material | Reel/Tray/Tube/Others |
Series | RailClamp® |
RCLAMP0564P.TNT Status (Lifecycle) | In Stock |
Part Status | Active |
Type | Steering (Rail to Rail) |
Unidirectional Channels | 4 |
Bidirectional Channels | - |
Voltage - Reverse Standoff (Typ) | 5V (Max) |
Voltage - Breakdown (Min) | 6.5V |
Voltage - Clamping (Max) @ Ipp | 4V |
Current - Peak Pulse (10/1000µs) | 3A (8/20µs) |
Power - Peak Pulse | - |
Power Line Protection | Yes |
Applications | HDMI |
Capacitance @ Frequency | 0.17pF @ 1MHz |
Operating Temperature | -40°C ~ 85°C (TJ) |
Mounting Type | Surface Mount |

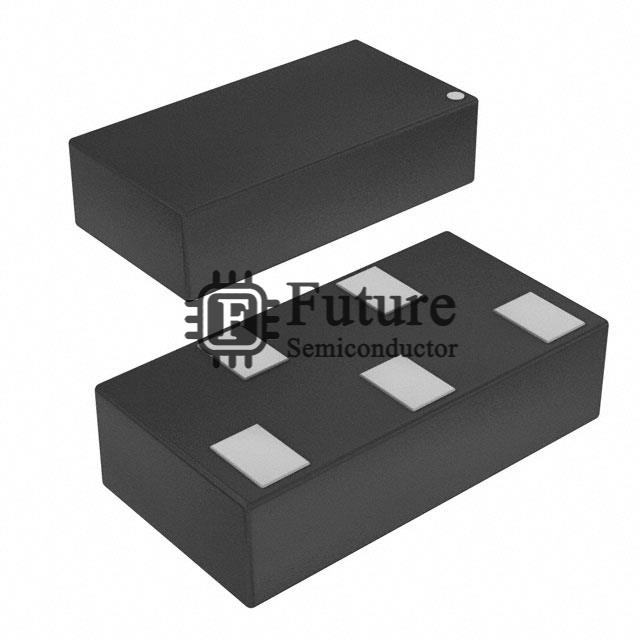

Package / Case | 5-UFDFN |
Supplier Device Package | SGP2010N5 |
Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
RCLAMP0564P.TNT Weight | Contact Us |
Replacement Part Number | RCLAMP0564P.TNT-FT |
