Home / Products / Filters / Common Mode Chokes / RB8532-16-1M3

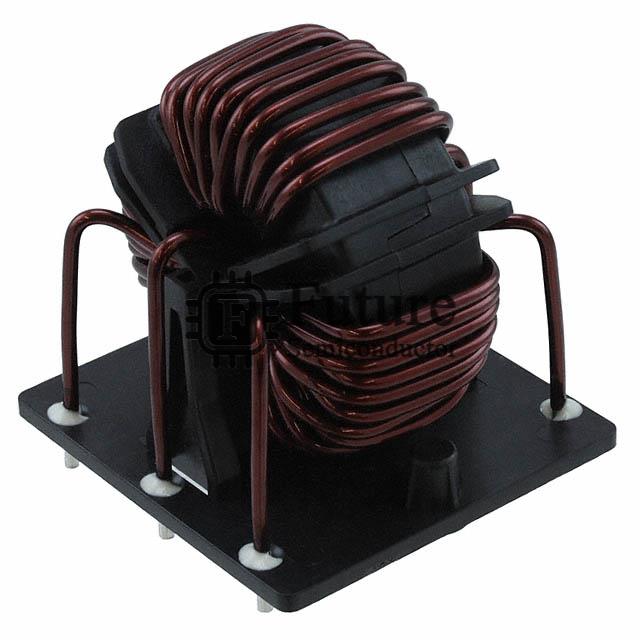

RB8532-16-1M3 Image

Schaffner EMC Inc. RB8532-16-1M3

MFG Part Number
RB8532-16-1M3
Available Quantity
83990 Pieces
Reference Price
USD 8.928
Our Price
We have a big discount, please contact us
Shipping Date
We can ship out today
Manufacturer
Schaffner EMC Inc.
Brief Description
RB CMC 1.3MH 16A 3LN TH
Lead Free Status / RoHS Status
RoHS Compliant (Lead Free)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Date Code (D/C)
New
Product Category
Common Mode Chokes
Stock Resource
Franchised Distributor
Warranty
360 days quality guarantee
Datasheet
RB8532-16-1M3.pdf
RB8532-16-1M3 Image

Request Quotation for RB8532-16-1M3

Company Name
Contact Person
Phone Number
Address
Email
Message

RB8532-16-1M3 Specifications

Manufacturer Part Number RB8532-16-1M3
Future Part Number FT-RB8532-16-1M3
SPQ / MOQ Contact Us
Packing Material Reel/Tray/Tube/Others
Series RB
RB8532-16-1M3 Status (Lifecycle) In Stock
Part Status Active
Filter Type Power Line
Number of Lines 3
Impedance @ Frequency -
Inductance @ Frequency 1.3mH @ 1kHz
Current Rating (Max) 16A
DC Resistance (DCR) (Max) 5.7 mOhm (Typ)
Voltage Rating - DC 1000V (1kV)
Voltage Rating - AC 600V
Operating Temperature -40°C ~ 125°C
Ratings -
Approvals -
Features -
Mounting Type Through Hole
Size / Dimension 2.283" L x 2.165" W (58.00mm x 55.00mm)
Height (Max) 2.283" (58.00mm)
Package / Case Vertical, 6 PC Pin
Country of Origin USA/JAPAN/MALAYSIA/MEXICO/CN
RB8532-16-1M3 Weight Contact Us
Replacement Part Number RB8532-16-1M3-FT
