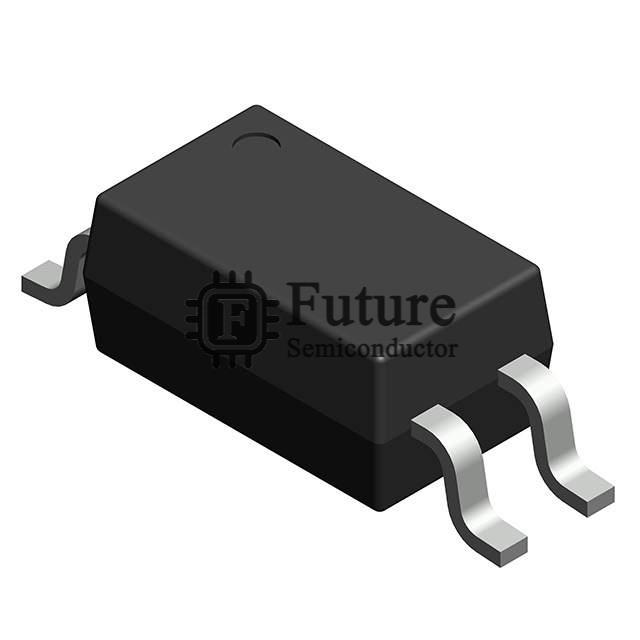

QT Brightek (QTB) QTH217T1

Name: QTH217T1
Brand: QT Brightek (QTB)
SKU: QTH217T1
Price: 0.112 USD
Availability: InStock
Rating: 5.0 (691 reviews)

MFG Part Number: QTH217T1

Available Quantity: 19770 Pieces

Reference Price: USD 0.112

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: QT Brightek (QTB)

Brief Description: - HALF PITCH MINI-FLAT PACKAGE PHO

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Optoisolators - Transistor, Photovoltaic Output

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: QTH217T1.pdf

QTH217T1 Specifications

Manufacturer Part Number	QTH217T1
Future Part Number	FT-QTH217T1
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
QTH217T1 Status (Lifecycle)	In Stock
Part Status	Active
Number of Channels	1
Voltage - Isolation	3750Vrms
Current Transfer Ratio (Min)	50% @ 5mA
Current Transfer Ratio (Max)	600% @ 5mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	6µs, 8µs
Input Type	DC
Output Type	Transistor
Voltage - Output (Max)	80V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.24V
Current - DC Forward (If) (Max)	50mA
Vce Saturation (Max)	200mV
Operating Temperature	-55°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	4-SOIC (0.173", 4.40mm Width)
Supplier Device Package	4-Mini-Flat
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
QTH217T1 Weight	Contact Us
Replacement Part Number	QTH217T1-FT
