Home / Products / Isolators / Optoisolators - Triac, SCR Output / Q3023

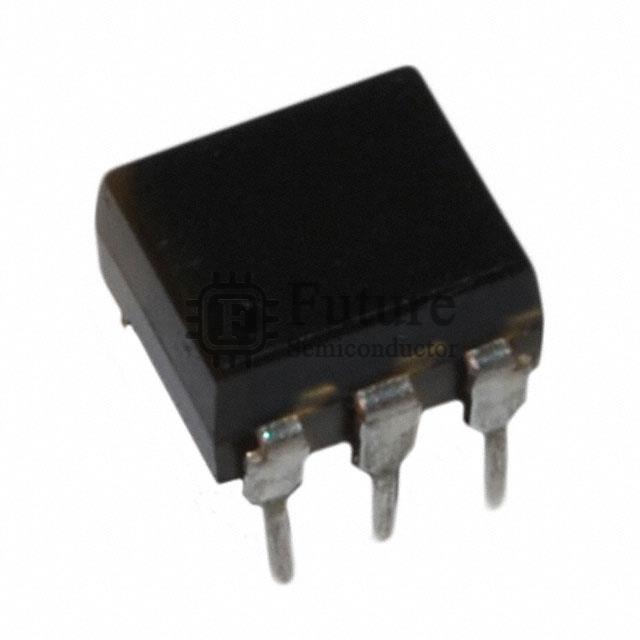

QT Brightek (QTB) Q3023
- MFG Part Number
- Q3023
- Available Quantity
- 14180 Pieces
- Reference Price
- USD 0.5104
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- QT Brightek (QTB)
- Brief Description
- - OPTOISOLATOR 5KV TRIAC 6DIP
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Optoisolators - Triac, SCR Output
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- Q3023.pdf
Q3023 Specifications
| Manufacturer Part Number | Q3023 |
|---|---|
| Future Part Number | FT-Q3023 |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | - |
| Q3023 Status (Lifecycle) | In Stock |
| Part Status | Active |
| Output Type | Triac |
| Zero Crossing Circuit | No |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Voltage - Off State | 400V |
| Static dV/dt (Min) | 100V/µs (Typ) |
| Current - LED Trigger (Ift) (Max) | 5mA |
| Current - On State (It (RMS)) (Max) | - |
| Current - Hold (Ih) | 250µA (Typ) |
| Turn On Time | - |
| Voltage - Forward (Vf) (Typ) | 1.18V |
| Current - DC Forward (If) (Max) | 60mA |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP (0.300", 7.62mm) |
| Supplier Device Package | 6-DIP |
| Approvals | UR, VDE |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| Q3023 Weight | Contact Us |
| Replacement Part Number | Q3023-FT |
