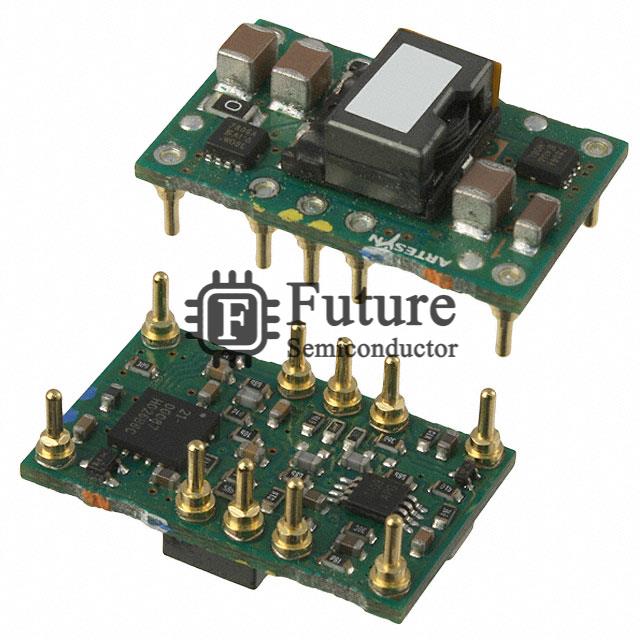

PTH12060WAD Image

Texas Instruments PTH12060WAD

MFG Part Number
PTH12060WAD
Available Quantity
20270 Pieces
Reference Price
USD 14.248
Our Price
We have a big discount, please contact us
Shipping Date
We can ship out today
Manufacturer
Texas Instruments
Brief Description
PTH12060 DC DC CONVERTER 1.2-5.5V 10A
Lead Free Status / RoHS Status
RoHS Compliant (Lead Free)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Date Code (D/C)
New
Product Category
DC DC Converters
Stock Resource
Franchised Distributor
Warranty
360 days quality guarantee
Datasheet
PTH12060WAD.pdf
PTH12060WAD Image

Request Quotation for PTH12060WAD

Company Name
Contact Person
Phone Number
Address
Email
Message

PTH12060WAD Specifications

Manufacturer Part Number PTH12060WAD
Future Part Number FT-PTH12060WAD
SPQ / MOQ Contact Us
Packing Material Reel/Tray/Tube/Others
Series PTH12060
PTH12060WAD Status (Lifecycle) In Stock
Part Status Active
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 1.2 ~ 5.5V
Voltage - Output 2 -
Voltage - Output 3 -
Voltage - Output 4 -
Current - Output (Max) 10A
Power (Watts) -
Voltage - Isolation -
Applications ITE (Commercial)
Features -
Operating Temperature -40°C ~ 85°C
Efficiency 94%
Mounting Type Through Hole
Package / Case 10-DIP Module
Size / Dimension 1.00" L x 0.62" W x 0.35" H (25.4mm x 15.7mm x 8.9mm)
Supplier Device Package -
Control Features -
Country of Origin USA/JAPAN/MALAYSIA/MEXICO/CN
PTH12060WAD Weight Contact Us
Replacement Part Number PTH12060WAD-FT
