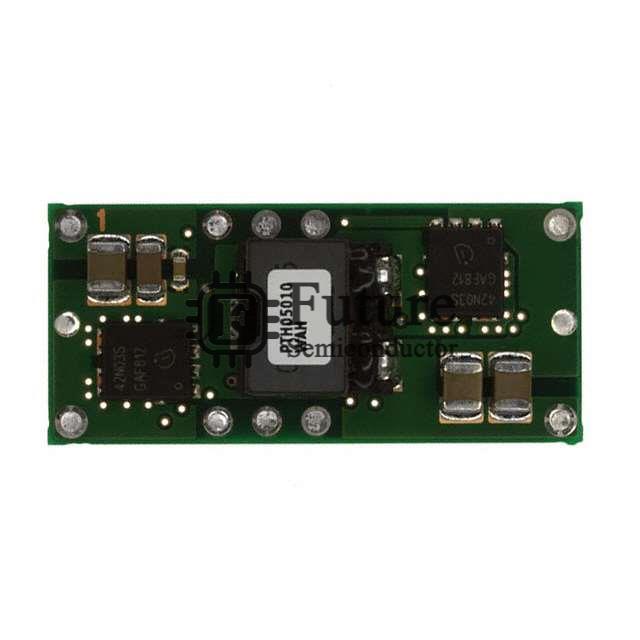

Texas Instruments PTH05010WAH

Name: PTH05010WAH
Brand: Texas Instruments
SKU: PTH05010WAH
Price: 16.864 USD
Availability: InStock
Rating: 4.6 (326 reviews)

MFG Part Number: PTH05010WAH

Available Quantity: 94750 Pieces

Reference Price: USD 16.864

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Texas Instruments

Brief Description: PTH05010W DC DC CONVERTER 0.8-3.6V 15A

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: DC DC Converters

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: PTH05010WAH.pdf

Request Quotation for PTH05010WAH

Company Name

Contact Person

Phone Number

Address

Email

Message

PTH05010WAH Specifications

Manufacturer Part Number	PTH05010WAH
Future Part Number	FT-PTH05010WAH
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	PTH05010W
PTH05010WAH Status (Lifecycle)	In Stock
Part Status	Active
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	0.8 ~ 3.6V
Voltage - Output 2	-
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (Max)	15A
Power (Watts)	-
Voltage - Isolation	-
Applications	ITE (Commercial)
Features	-
Operating Temperature	-40°C ~ 85°C
Efficiency	95%
Mounting Type	Through Hole
Package / Case	10-DIP Module
Size / Dimension	1.37" L x 0.62" W x 0.35" H (34.8mm x 15.7mm x 8.9mm)
Supplier Device Package	-
Control Features	-
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
PTH05010WAH Weight	Contact Us
Replacement Part Number	PTH05010WAH-FT
