Home / Products / Power Supplies - Board Mount / DC DC Converters / PTH05010WAD

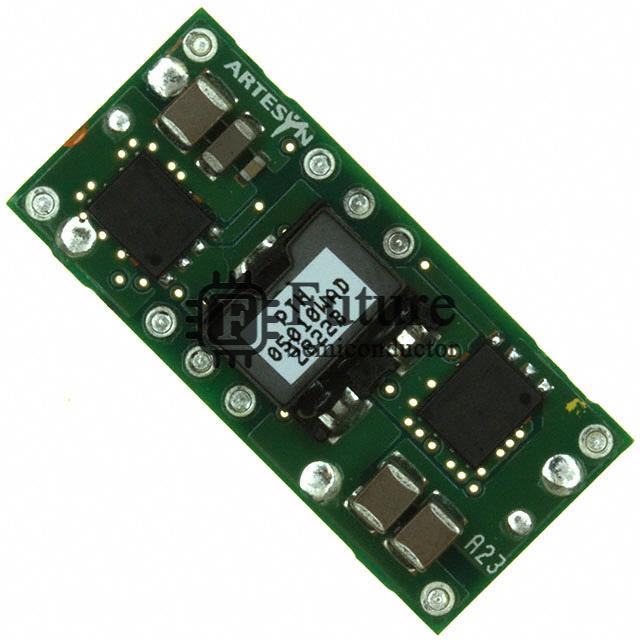

Artesyn Embedded Technologies PTH05010WAD
- MFG Part Number
- PTH05010WAD
- Available Quantity
- 40270 Pieces
- Reference Price
- USD 16.728
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Artesyn Embedded Technologies
- Brief Description
- PTH05010W (54W) DC DC CONVERTER 0.8-3.6V 54W
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- DC DC Converters
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- PTH05010WAD.pdf
PTH05010WAD Specifications
| Manufacturer Part Number | PTH05010WAD |
|---|---|
| Future Part Number | FT-PTH05010WAD |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | PTH05010W (54W) |
| PTH05010WAD Status (Lifecycle) | In Stock |
| Part Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 0.8 ~ 3.6V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 15A |
| Power (Watts) | 54W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OTP, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 95% |
| Mounting Type | Through Hole |
| Package / Case | 10-DIP Module |
| Size / Dimension | 1.37" L x 0.62" W x 0.35" H (34.8mm x 15.7mm x 8.9mm) |
| Supplier Device Package | - |
| Control Features | - |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| PTH05010WAD Weight | Contact Us |
| Replacement Part Number | PTH05010WAD-FT |
