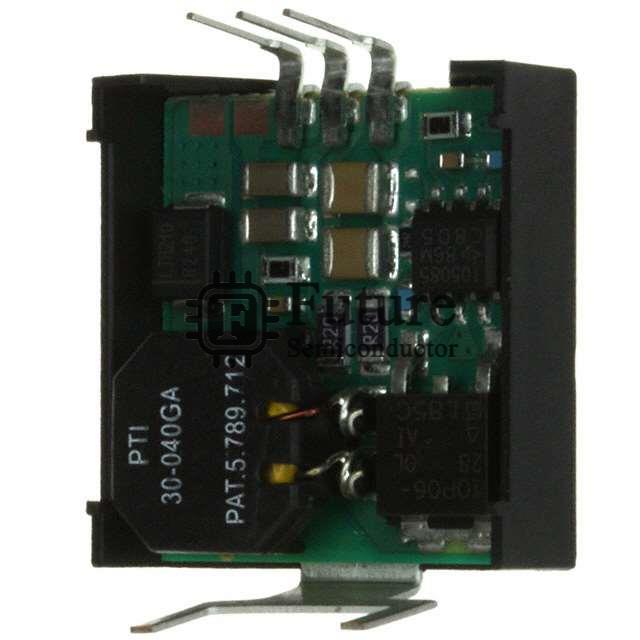

Texas Instruments PT78NR114H

Name: PT78NR114H
Brand: Texas Instruments
SKU: PT78NR114H
Availability: InStock
Rating: 4.9 (16 reviews)

MFG Part Number: PT78NR114H

Available Quantity: 52120 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Texas Instruments

Brief Description: PT78NR100 DC DC CONVERTER -13.9V 0.3A

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: DC DC Converters

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: PT78NR114H.pdf

Request Quotation for PT78NR114H

Company Name

Contact Person

Phone Number

Address

Email

Message

PT78NR114H Specifications

Manufacturer Part Number	PT78NR114H
Future Part Number	FT-PT78NR114H
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	PT78NR100
PT78NR114H Status (Lifecycle)	In Stock
Part Status	Obsolete
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	7V
Voltage - Input (Max)	15V
Voltage - Output 1	-13.9V
Voltage - Output 2	-
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (Max)	300mA
Power (Watts)	-
Voltage - Isolation	-
Applications	ITE (Commercial)
Features	OTP, SCP
Operating Temperature	-40°C ~ 85°C
Efficiency	75%
Mounting Type	Through Hole, Right Angle
Package / Case	3-SIP Module
Size / Dimension	0.94" L x 0.90" W x 0.31" H (23.9mm x 22.9mm x 7.9mm)
Supplier Device Package	-
Control Features	-
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
PT78NR114H Weight	Contact Us
Replacement Part Number	PT78NR114H-FT
