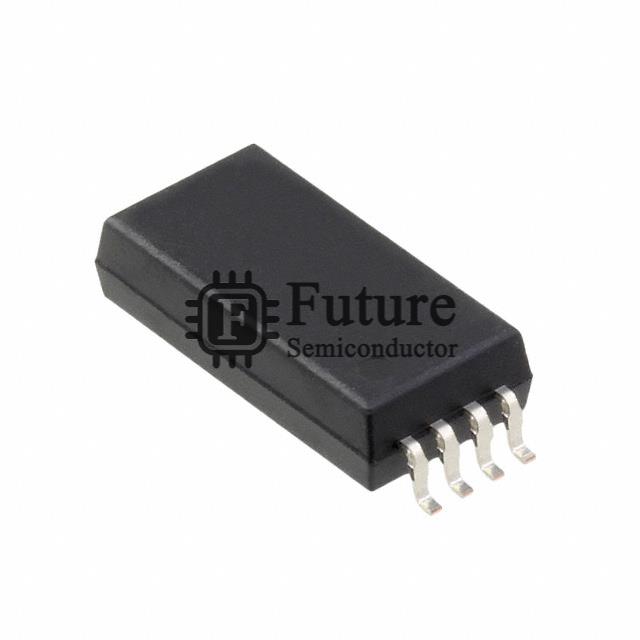

CEL PS9924-Y-AX

Name: PS9924-Y-AX
Brand: CEL
SKU: PS9924-Y-AX
Price: 7 USD
Availability: InStock
Rating: 4.9 (66 reviews)

MFG Part Number: PS9924-Y-AX

Available Quantity: 25050 Pieces

Reference Price: USD 7

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: CEL

Brief Description: - OPTOISO 7.5KV OPN COLLECTOR 8DIP

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Optoisolators - Logic Output

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: PS9924-Y-AX.pdf

Request Quotation for PS9924-Y-AX

Company Name

Contact Person

Phone Number

Address

Email

Message

PS9924-Y-AX Specifications

Manufacturer Part Number	PS9924-Y-AX
Future Part Number	FT-PS9924-Y-AX
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
PS9924-Y-AX Status (Lifecycle)	In Stock
Part Status	Active
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	7500Vrms
Common Mode Transient Immunity (Min)	15kV/µs
Input Type	DC
Output Type	Open Collector
Current - Output / Channel	25mA
Data Rate	10Mbps
Propagation Delay tpLH / tpHL (Max)	75ns, 75ns
Rise / Fall Time (Typ)	20ns, 5ns
Voltage - Forward (Vf) (Typ)	1.56V
Current - DC Forward (If) (Max)	25mA
Voltage - Supply	2.7V ~ 5.5V
Operating Temperature	-40°C ~ 110°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.543", 13.80mm Width)
Supplier Device Package	8-LSDIP
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
PS9924-Y-AX Weight	Contact Us
Replacement Part Number	PS9924-Y-AX-FT
