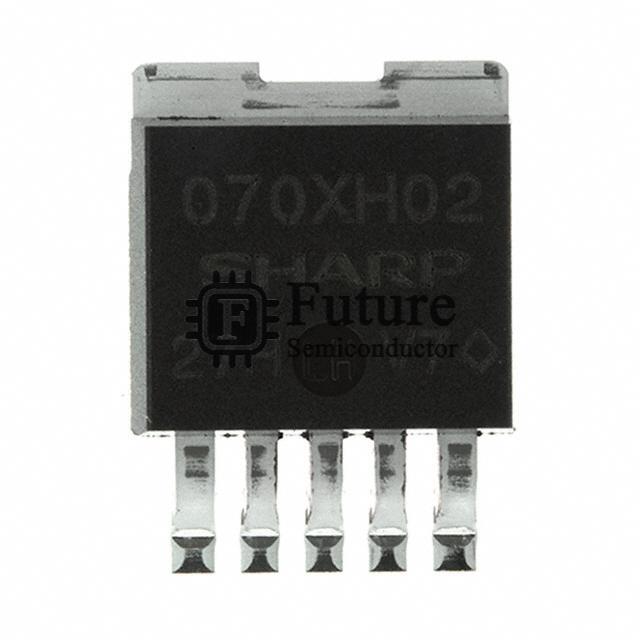

Sharp Microelectronics PQ070XH02ZPH

Name: PQ070XH02ZPH
Brand: Sharp Microelectronics
SKU: PQ070XH02ZPH
Availability: InStock
Rating: 4.6 (41 reviews)

MFG Part Number: PQ070XH02ZPH

Available Quantity: 78770 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Sharp Microelectronics

Brief Description: - IC REG LINEAR POS ADJ 2A TO263

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: PMIC - Voltage Regulators - Linear

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: PQ070XH02ZPH.pdf

Request Quotation for PQ070XH02ZPH

Company Name

Contact Person

Phone Number

Address

Email

Message

PQ070XH02ZPH Specifications

Manufacturer Part Number	PQ070XH02ZPH
Future Part Number	FT-PQ070XH02ZPH
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
PQ070XH02ZPH Status (Lifecycle)	In Stock
Part Status	Obsolete
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	10V
Voltage - Output (Min/Fixed)	1.5V
Voltage - Output (Max)	7V
Voltage Dropout (Max)	0.5V @ 2A
Current - Output	2A
Current - Quiescent (Iq)	2mA
Current - Supply (Max)	-
PSRR	60dB (120Hz)
Control Features	Enable
Protection Features	Over Current, Over Temperature
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device Package	TO-263
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
PQ070XH02ZPH Weight	Contact Us
Replacement Part Number	PQ070XH02ZPH-FT
