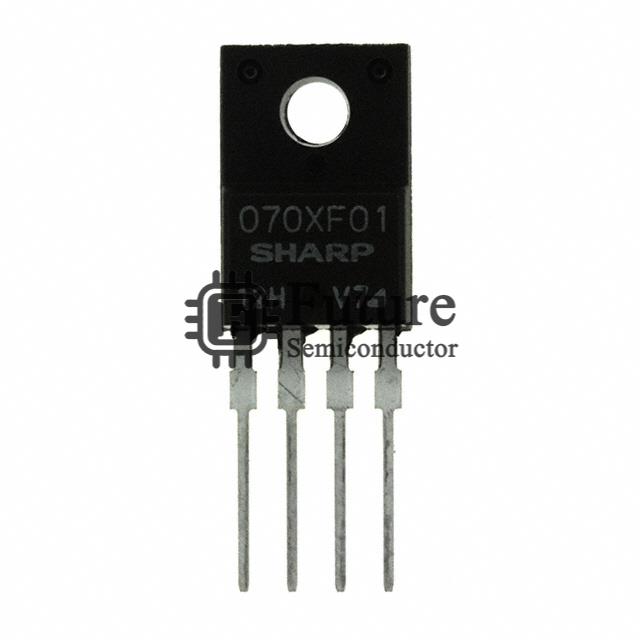

Sharp Microelectronics PQ070XF01SZH
- MFG Part Number
- PQ070XF01SZH
- Available Quantity
- 39120 Pieces
- Reference Price
- USD 0.344
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Sharp Microelectronics
- Brief Description
- - IC REG LINEAR POS ADJ 1A TO220-4
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- PMIC - Voltage Regulators - Linear
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- PQ070XF01SZH.pdf
PQ070XF01SZH Specifications
| Manufacturer Part Number | PQ070XF01SZH |
|---|---|
| Future Part Number | FT-PQ070XF01SZH |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | - |
| PQ070XF01SZH Status (Lifecycle) | In Stock |
| Part Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 10V |
| Voltage - Output (Min/Fixed) | 1.5V |
| Voltage - Output (Max) | 7V |
| Voltage Dropout (Max) | 0.5V @ 500mA |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 2mA |
| Current - Supply (Max) | - |
| PSRR | 60dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | TO-220-4 |
| Supplier Device Package | TO-220-4 |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| PQ070XF01SZH Weight | Contact Us |
| Replacement Part Number | PQ070XF01SZH-FT |
