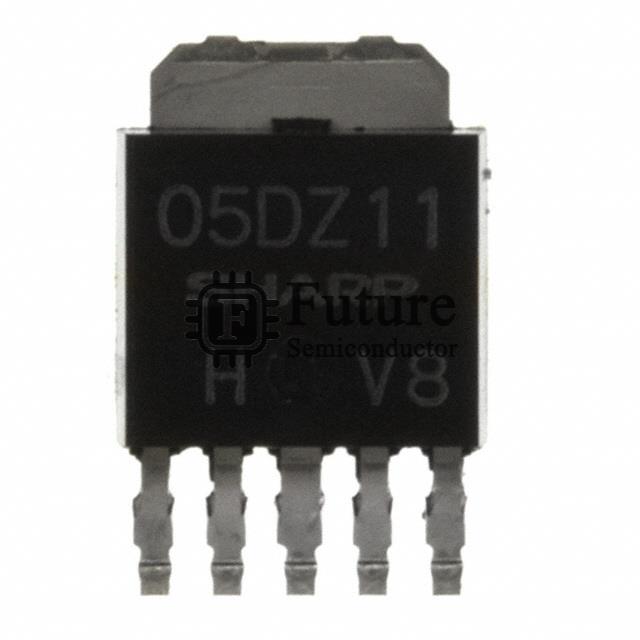

Sharp Microelectronics PQ05DZ11J00H

Name: PQ05DZ11J00H
Brand: Sharp Microelectronics
SKU: PQ05DZ11J00H
Availability: InStock
Rating: 4.7 (464 reviews)

MFG Part Number: PQ05DZ11J00H

Available Quantity: 73260 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Sharp Microelectronics

Brief Description: - IC REG LINEAR 5V 1A SC63

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: PMIC - Voltage Regulators - Linear

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: PQ05DZ11J00H.pdf

Request Quotation for PQ05DZ11J00H

Company Name

Contact Person

Phone Number

Address

Email

Message

PQ05DZ11J00H Specifications

Manufacturer Part Number	PQ05DZ11J00H
Future Part Number	FT-PQ05DZ11J00H
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
PQ05DZ11J00H Status (Lifecycle)	In Stock
Part Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	24V
Voltage - Output (Min/Fixed)	5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.5V @ 500mA
Current - Output	1A
Current - Quiescent (Iq)	10mA
Current - Supply (Max)	-
PSRR	60dB (120Hz)
Control Features	Enable
Protection Features	Over Current, Over Temperature
Operating Temperature	-20°C ~ 80°C
Mounting Type	Surface Mount
Package / Case	TO-252-6, DPak (5 Leads + Tab)
Supplier Device Package	SC-63
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
PQ05DZ11J00H Weight	Contact Us
Replacement Part Number	PQ05DZ11J00H-FT
