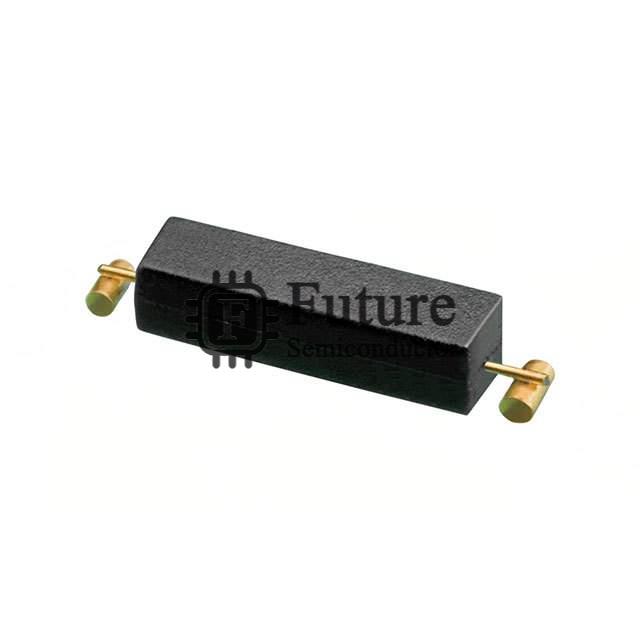

PIC GmbH PMC-0701TH1520

Name: PMC-0701TH1520
Brand: PIC GmbH
SKU: PMC-0701TH1520
Price: 0.5984 USD
Availability: InStock
Rating: 4.9 (329 reviews)

MFG Part Number: PMC-0701TH1520

Available Quantity: 12400 Pieces

Reference Price: USD 0.5984

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: PIC GmbH

Brief Description: - STANDARD SMD REED SWITCH PITCH 1

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Magnetic, Reed Switches

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: PMC-0701TH1520.pdf

Request Quotation for PMC-0701TH1520

Company Name

Contact Person

Phone Number

Address

Email

Message

PMC-0701TH1520 Specifications

Manufacturer Part Number	PMC-0701TH1520
Future Part Number	FT-PMC-0701TH1520
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
PMC-0701TH1520 Status (Lifecycle)	In Stock
Part Status	Active
Type	Molded Body
Circuit	SPST-NO
Operate Range	15 ~ 20AT
Release Range	4AT
Current - Switching	500mA (AC/DC)
Voltage - Switching AC	120V
Voltage - Switching DC	150V
Power - Rated	10W
Operate Time	0.3ms
Release Time	0.1ms
Mounting Type	Surface Mount
Termination Style	Axial
Length - Overall	0.492" (12.50mm)
Size - Body	0.335" L x 0.110" W x 0.098" H (8.50mm x 2.80mm x 2.50mm)
Height Above Board	-
Operating Temperature	-40°C ~ 125°C
Capacitance	-
Current - Carry	700mA (AC/DC)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
PMC-0701TH1520 Weight	Contact Us
Replacement Part Number	PMC-0701TH1520-FT
