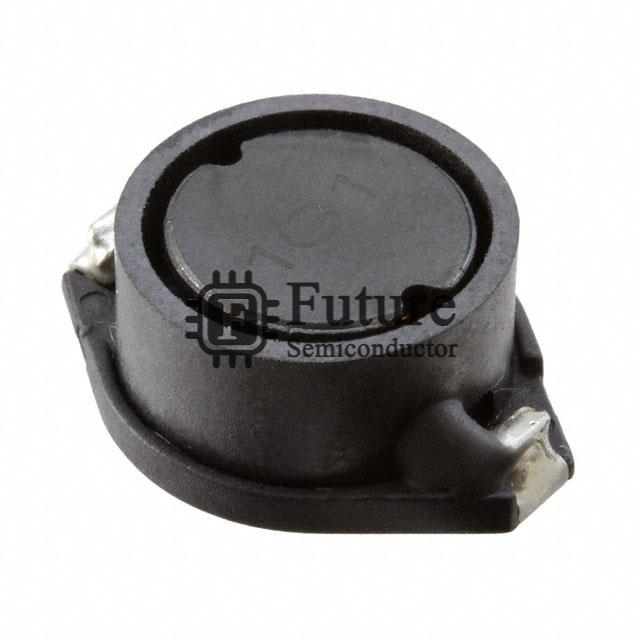

Bourns Inc. PM5022S-331M-RC

Name: PM5022S-331M-RC
Brand: Bourns Inc.
SKU: PM5022S-331M-RC
Price: 0.607616 USD
Availability: InStock
Rating: 4.5 (664 reviews)

MFG Part Number: PM5022S-331M-RC

Available Quantity: 14080 Pieces

Reference Price: USD 0.607616

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Bourns Inc.

Brief Description: PM5022S FIXED Inductors 330UH 800MA 790 MOHM

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Fixed Inductors

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: PM5022S-331M-RC.pdf

Request Quotation for PM5022S-331M-RC

Company Name

Contact Person

Phone Number

Address

Email

Message

PM5022S-331M-RC Specifications

Manufacturer Part Number	PM5022S-331M-RC
Future Part Number	FT-PM5022S-331M-RC
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	PM5022S
PM5022S-331M-RC Status (Lifecycle)	In Stock
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	330µH
Tolerance	±20%
Current Rating	800mA
Current - Saturation	1.4A
Shielding	Shielded
DC Resistance (DCR)	790 mOhm
Q @ Freq	30 @ 796kHz
Frequency - Self Resonant	3MHz
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	100kHz
Features	-
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.720" L x 0.551" W (18.30mm x 14.00mm)
Height - Seated (Max)	0.280" (7.10mm)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
PM5022S-331M-RC Weight	Contact Us
Replacement Part Number	PM5022S-331M-RC-FT
