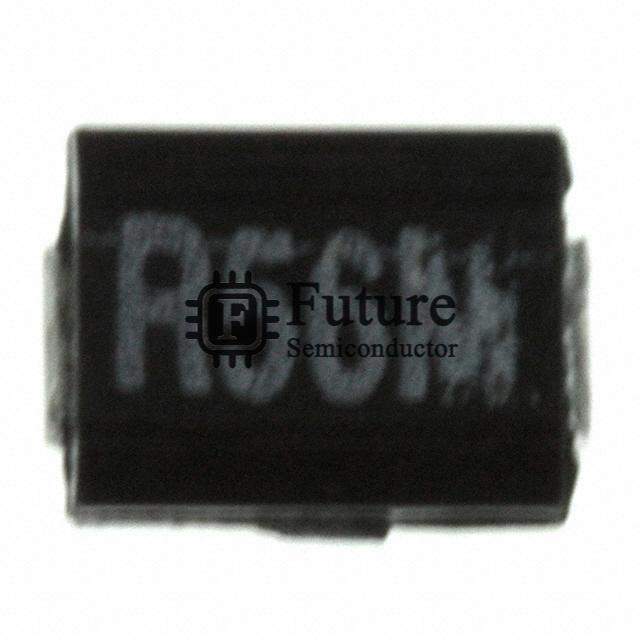

Bourns Inc. PM40-R56M

Name: PM40-R56M
Brand: Bourns Inc.
SKU: PM40-R56M
Availability: InStock
Rating: 5.0 (762 reviews)

MFG Part Number: PM40-R56M

Available Quantity: 88960 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Bourns Inc.

Brief Description: PM40 FIXED Inductors 560NH 450MA 550 MOHM

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Fixed Inductors

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: PM40-R56M.pdf

Request Quotation for PM40-R56M

Company Name

Contact Person

Phone Number

Address

Email

Message

PM40-R56M Specifications

Manufacturer Part Number	PM40-R56M
Future Part Number	FT-PM40-R56M
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	PM40
PM40-R56M Status (Lifecycle)	In Stock
Part Status	Obsolete
Type	Molded
Material - Core	Non-Magnetic
Inductance	560nH
Tolerance	±20%
Current Rating	450mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	550 mOhm Max
Q @ Freq	30 @ 25.2MHz
Frequency - Self Resonant	180MHz
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	25.2MHz
Features	-
Mounting Type	Surface Mount
Package / Case	1812 (4532 Metric)
Supplier Device Package	1812
Size / Dimension	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max)	0.126" (3.20mm)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
PM40-R56M Weight	Contact Us
Replacement Part Number	PM40-R56M-FT
