Home / Products / Inductors, Coils, Chokes / Arrays, Signal Transformers / PM3604-300-B-RC

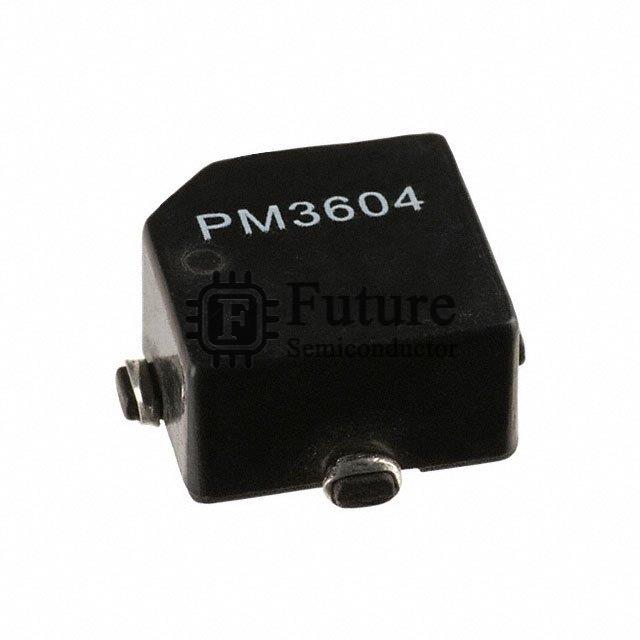

Bourns Inc. PM3604-300-B-RC
- MFG Part Number
- PM3604-300-B-RC
- Available Quantity
- 27590 Pieces
- Reference Price
- USD 0
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Bourns Inc.
- Brief Description
- PM3600 INDUCT ARRAY 2 COIL 300UH SMD
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Arrays, Signal Transformers
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- PM3604-300-B-RC.pdf
PM3604-300-B-RC Specifications
| Manufacturer Part Number | PM3604-300-B-RC |
|---|---|
| Future Part Number | FT-PM3604-300-B-RC |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | PM3600 |
| PM3604-300-B-RC Status (Lifecycle) | In Stock |
| Part Status | Obsolete |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 300µH |
| Inductance - Connected In Series | 1.2mH |
| Tolerance | ±20% |
| Current Rating - Parallel | 520mA |
| Current Rating - Series | 260mA |
| Current Saturation - Parallel | - |
| Current Saturation - Series | - |
| DC Resistance (DCR) - Parallel | 730 mOhm Max |
| DC Resistance (DCR) - Series | 2.92 Ohm Max |
| Shielding | Unshielded |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.550" L x 0.452" W (13.97mm x 11.48mm) |
| Height | 0.265" (6.73mm) |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| PM3604-300-B-RC Weight | Contact Us |
| Replacement Part Number | PM3604-300-B-RC-FT |
