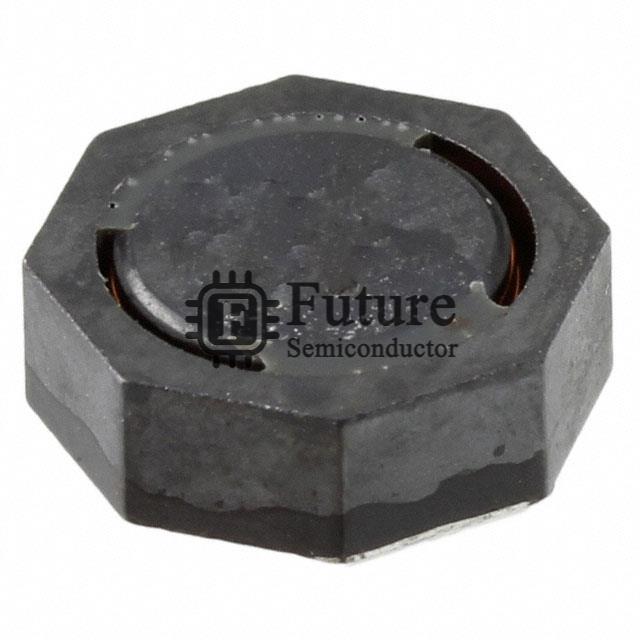

Bourns Inc. PM104SH-220-RC

Name: PM104SH-220-RC
Brand: Bourns Inc.
SKU: PM104SH-220-RC
Price: 0.652 USD
Availability: InStock
Rating: 5.0 (772 reviews)

MFG Part Number: PM104SH-220-RC

Available Quantity: 52120 Pieces

Reference Price: USD 0.652

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Bourns Inc.

Brief Description: PM104SH FIXED Inductors 22UH 2.2A 55.8 MOHM

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Fixed Inductors

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: PM104SH-220-RC.pdf

Request Quotation for PM104SH-220-RC

Company Name

Contact Person

Phone Number

Address

Email

Message

PM104SH-220-RC Specifications

Manufacturer Part Number	PM104SH-220-RC
Future Part Number	FT-PM104SH-220-RC
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	PM104SH
PM104SH-220-RC Status (Lifecycle)	In Stock
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	22µH
Tolerance	±30%
Current Rating	2.2A
Current - Saturation	2.3A
Shielding	Shielded
DC Resistance (DCR)	55.8 mOhm Max
Q @ Freq	20 @ 2.52MHz
Frequency - Self Resonant	12MHz
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	2.52MHz
Features	-
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max)	0.161" (4.10mm)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
PM104SH-220-RC Weight	Contact Us
Replacement Part Number	PM104SH-220-RC-FT
