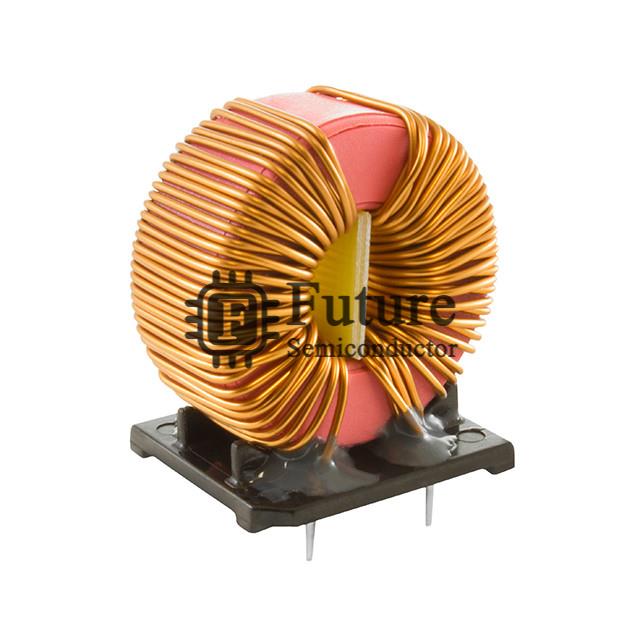

Pulse Electronics Power PH9455.705NL

Name: PH9455.705NL
Brand: Pulse Electronics Power
SKU: PH9455.705NL
Price: 6.256 USD
Availability: InStock
Rating: 4.8 (641 reviews)

MFG Part Number: PH9455.705NL

Available Quantity: 53940 Pieces

Reference Price: USD 6.256

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Pulse Electronics Power

Brief Description: - CMC 6.5MH 9A 2LN 6.4 KOHM TH

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Common Mode Chokes

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: PH9455.705NL.pdf

Request Quotation for PH9455.705NL

Company Name

Contact Person

Phone Number

Address

Email

Message

PH9455.705NL Specifications

Manufacturer Part Number	PH9455.705NL
Future Part Number	FT-PH9455.705NL
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
PH9455.705NL Status (Lifecycle)	In Stock
Part Status	Active
Filter Type	-
Number of Lines	2
Impedance @ Frequency	6.4 kOhms @ 1.52MHz
Inductance @ Frequency	6.5mH @ 1.52MHz
Current Rating (Max)	9A
DC Resistance (DCR) (Max)	14 mOhm
Voltage Rating - DC	-
Voltage Rating - AC	250V
Operating Temperature	-40°C ~ 125°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Through Hole
Size / Dimension	1.181" L x 0.748" W (30.00mm x 19.00mm)
Height (Max)	1.102" (28.00mm)
Package / Case	Vertical, 4 PC Pin
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
PH9455.705NL Weight	Contact Us
Replacement Part Number	PH9455.705NL-FT
