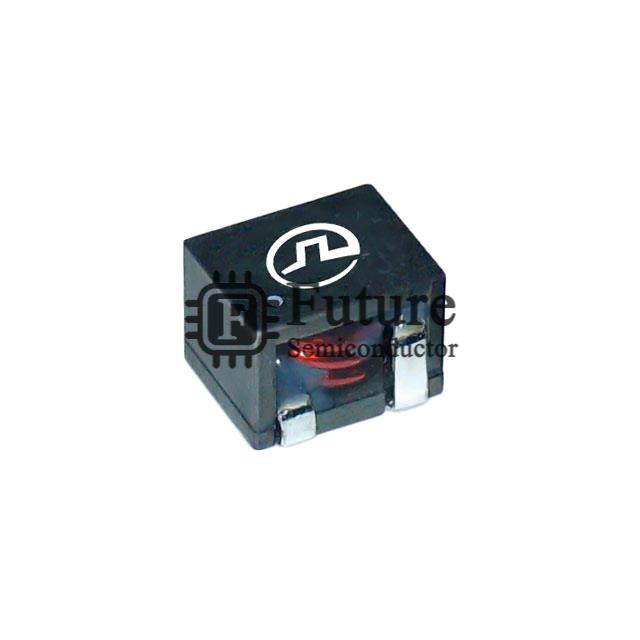

Pulse Electronics Power PG0936.253NLT
- MFG Part Number
- PG0936.253NLT
- Available Quantity
- 13790 Pieces
- Reference Price
- USD 1.43184
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Pulse Electronics Power
- Brief Description
- PG0936NL FIXED Inductors 25UH 7A 19.4 MOHM SMD
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Fixed Inductors
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- PG0936.253NLT.pdf
PG0936.253NLT Specifications
| Manufacturer Part Number | PG0936.253NLT |
|---|---|
| Future Part Number | FT-PG0936.253NLT |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | PG0936NL |
| PG0936.253NLT Status (Lifecycle) | In Stock |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 25µH |
| Tolerance | ±20% |
| Current Rating | 7A |
| Current - Saturation | 9.2A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 19.4 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 130°C |
| Inductance Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.689" L x 0.657" W (17.50mm x 16.70mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| PG0936.253NLT Weight | Contact Us |
| Replacement Part Number | PG0936.253NLT-FT |
