Home / Products / Inductors, Coils, Chokes / Fixed Inductors / PF0560.702NLT

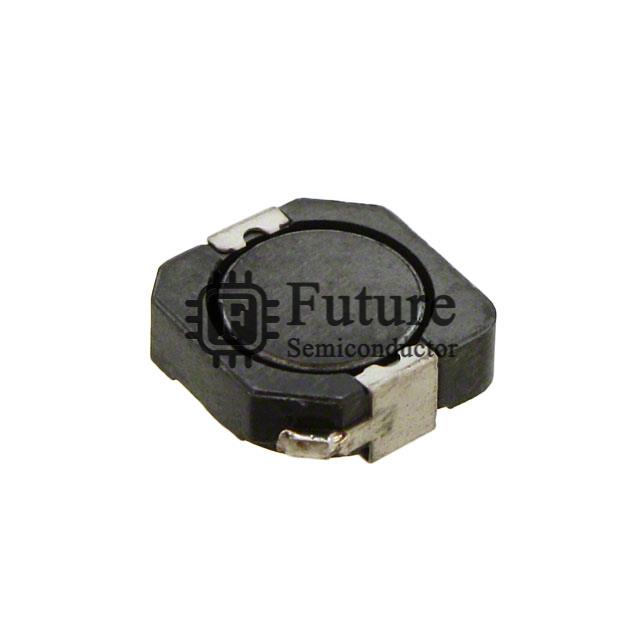

Pulse Electronics Power PF0560.702NLT
- MFG Part Number
- PF0560.702NLT
- Available Quantity
- 30650 Pieces
- Reference Price
- USD 0.62792
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Pulse Electronics Power
- Brief Description
- PF0560NL FIXED Inductors 7UH 4.5A 27 MOHM SMD
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Fixed Inductors
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- PF0560.702NLT.pdf
PF0560.702NLT Specifications
| Manufacturer Part Number | PF0560.702NLT |
|---|---|
| Future Part Number | FT-PF0560.702NLT |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | PF0560NL |
| PF0560.702NLT Status (Lifecycle) | In Stock |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 7µH |
| Tolerance | ±30% |
| Current Rating | 4.5A |
| Current - Saturation | 4.8A |
| Shielding | Shielded |
| DC Resistance (DCR) | 27 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 29MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.409" L x 0.406" W (10.40mm x 10.30mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| PF0560.702NLT Weight | Contact Us |
| Replacement Part Number | PF0560.702NLT-FT |
