Home / Products / Circuit Protection / TVS - Diodes / PESD3USB30Z
Nexperia USA Inc. PESD3USB30Z
- MFG Part Number
- PESD3USB30Z
- Available Quantity
- 97920 Pieces
- Reference Price
- USD 0.308416
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Nexperia USA Inc.
- Brief Description
- - TVS DIODE 5.5V 15WLCSP
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- TVS - Diodes
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- PESD3USB30Z.pdf
PESD3USB30Z Specifications
| Manufacturer Part Number | PESD3USB30Z |
|---|---|
| Future Part Number | FT-PESD3USB30Z |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | - |
| PESD3USB30Z Status (Lifecycle) | In Stock |
| Part Status | Active |
| Type | Zener |
| Unidirectional Channels | 6 |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 5.5V (Max) |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | - |
| Current - Peak Pulse (10/1000µs) | 8A (8/20µs) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | HDMI |
| Capacitance @ Frequency | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

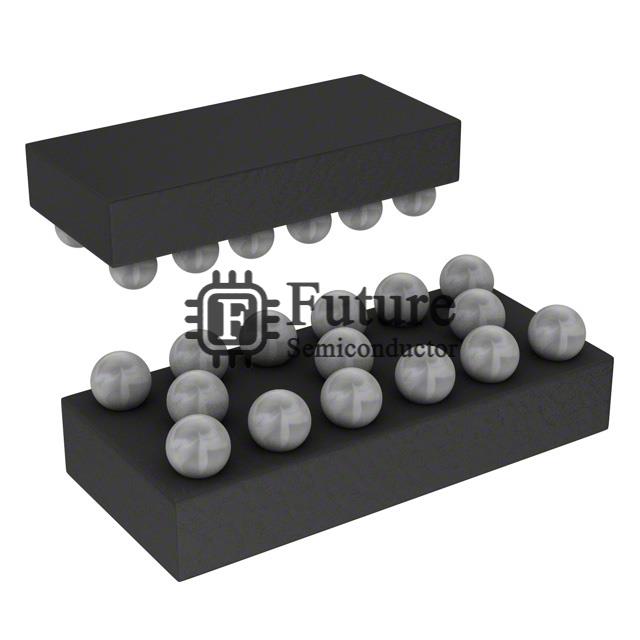

| Package / Case | 15-UFBGA, WLCSP |
| Supplier Device Package | 15-WLCSP (2.37x1.17) |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| PESD3USB30Z Weight | Contact Us |
| Replacement Part Number | PESD3USB30Z-FT |
