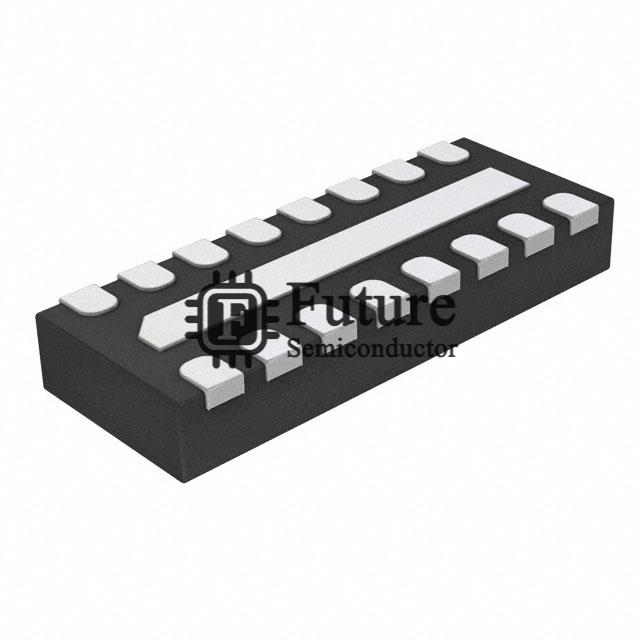

NXP USA Inc. PEMI8QFN/HT,132

Name: PEMI8QFN/HT,132
Brand: NXP USA Inc.
SKU: PEMI8QFN/HT,132
Availability: InStock
Rating: 4.6 (68 reviews)

MFG Part Number: PEMI8QFN/HT,132

Available Quantity: 23260 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: NXP USA Inc.

Brief Description: PEMIxQFN FILTER RCPI 45 OHM/23PF SMD

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: EMI/RFI Filters (LC, RC Networks)

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: PEMI8QFN/HT,132.pdf

Request Quotation for PEMI8QFN/HT,132

Company Name

Contact Person

Phone Number

Address

Email

Message

PEMI8QFN/HT,132 Specifications

Manufacturer Part Number	PEMI8QFN/HT,132
Future Part Number	FT-PEMI8QFN/HT,132
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	PEMIxQFN
PEMI8QFN/HT,132 Status (Lifecycle)	In Stock
Part Status	Obsolete
Type	Low Pass
Filter Order	2nd
Technology	RC (Pi)
Number of Channels	8
Center / Cutoff Frequency	-
Attenuation Value	20dB @ 800MHz ~ 3GHz
Resistance - Channel (Ohms)	45
Current	-
Values	R = 45 Ohms, C = 23pF (Total)
ESD Protection	Yes
Operating Temperature	-40°C ~ 85°C
Applications	LAN, PCS, WAN
Voltage - Rated	-
Mounting Type	Surface Mount
Package / Case	16-XFDFN Exposed Pad
Size / Dimension	0.130" L x 0.047" W (3.30mm x 1.20mm)
Height	0.020" (0.50mm)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
PEMI8QFN/HT,132 Weight	Contact Us
Replacement Part Number	PEMI8QFN/HT,132-FT
