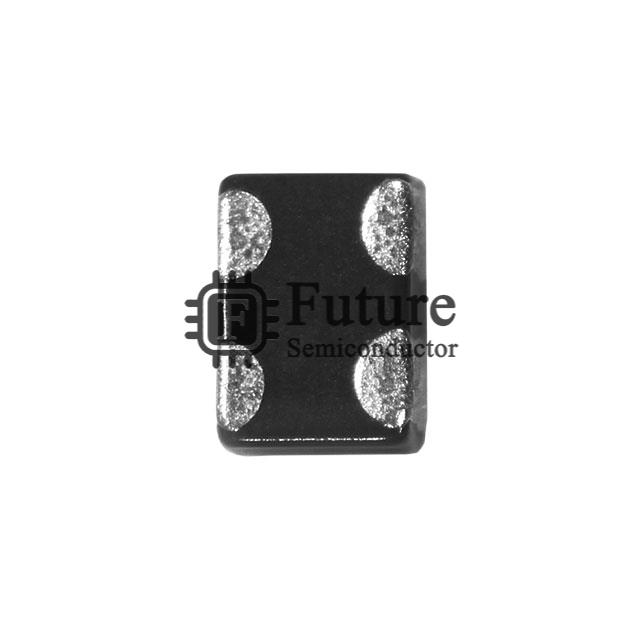

Pulse Electronics Network PE-0302MCMC120GT

Name: PE-0302MCMC120GT
Brand: Pulse Electronics Network
SKU: PE-0302MCMC120GT
Availability: InStock
Rating: 4.6 (276 reviews)

MFG Part Number: PE-0302MCMC120GT

Available Quantity: 34290 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Pulse Electronics Network

Brief Description: 0302 CMC 130MA 2LN 12 OHM SMD

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Common Mode Chokes

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: PE-0302MCMC120GT.pdf

Request Quotation for PE-0302MCMC120GT

Company Name

Contact Person

Phone Number

Address

Email

Message

PE-0302MCMC120GT Specifications

Manufacturer Part Number	PE-0302MCMC120GT
Future Part Number	FT-PE-0302MCMC120GT
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	0302
PE-0302MCMC120GT Status (Lifecycle)	In Stock
Part Status	Obsolete
Filter Type	Signal Line
Number of Lines	2
Impedance @ Frequency	12 Ohms @ 100MHz
Inductance @ Frequency	-
Current Rating (Max)	130mA
DC Resistance (DCR) (Max)	2.5 Ohm
Voltage Rating - DC	5V
Voltage Rating - AC	-
Operating Temperature	-40°C ~ 85°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Surface Mount
Size / Dimension	0.033" L x 0.026" W (0.85mm x 0.65mm)
Height (Max)	0.018" (0.45mm)
Package / Case	0302 (0806 Metric), 4 Lead
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
PE-0302MCMC120GT Weight	Contact Us
Replacement Part Number	PE-0302MCMC120GT-FT
