Nexperia USA Inc. PCMF3HDMI2SZ

Name: PCMF3HDMI2SZ
Brand: Nexperia USA Inc.
SKU: PCMF3HDMI2SZ
Price: 0.38808 USD
Availability: InStock
Rating: 4.9 (563 reviews)

MFG Part Number: PCMF3HDMI2SZ

Available Quantity: 15520 Pieces

Reference Price: USD 0.38808

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Nexperia USA Inc.

Brief Description: PCM COMMON MODE CHOKE 6LN SMD ESD

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Common Mode Chokes

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: PCMF3HDMI2SZ.pdf

PCMF3HDMI2SZ Specifications

Manufacturer Part Number	PCMF3HDMI2SZ
Future Part Number	FT-PCMF3HDMI2SZ
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	PCM
PCMF3HDMI2SZ Status (Lifecycle)	In Stock
Part Status	Active
Filter Type	Signal Line
Number of Lines	6
Impedance @ Frequency	-
Inductance @ Frequency	-
Current Rating (Max)	-
DC Resistance (DCR) (Max)	3 Ohm (Typ)
Voltage Rating - DC	-
Voltage Rating - AC	-
Operating Temperature	-40°C ~ 85°C
Ratings	-
Approvals	-
Features	ESD
Mounting Type	Surface Mount
Size / Dimension	0.093" L x 0.046" W (2.37mm x 1.17mm)
Height (Max)	0.024" (0.60mm)

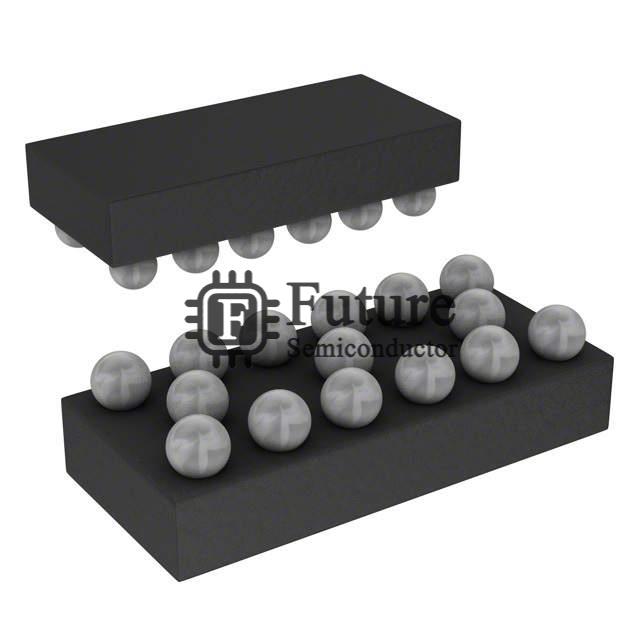

Package / Case	15-UFBGA, WLCSP
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
PCMF3HDMI2SZ Weight	Contact Us
Replacement Part Number	PCMF3HDMI2SZ-FT
