Home / Products / Isolators / Optoisolators - Transistor, Photovoltaic Output / PC3H710NIP1H

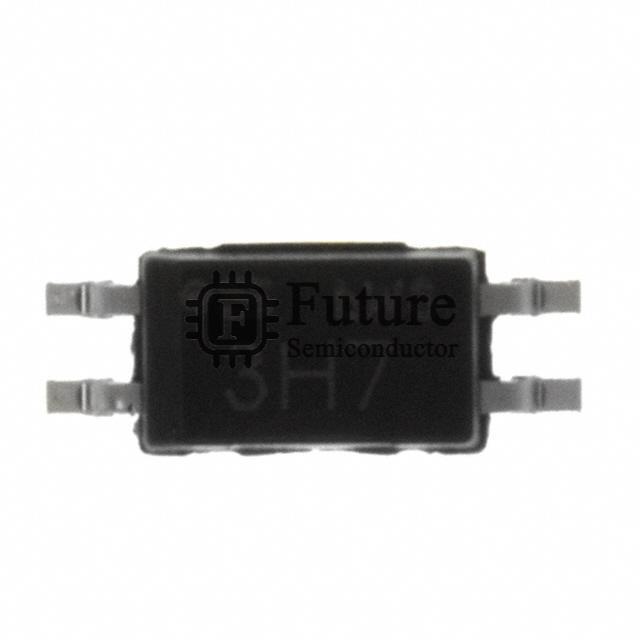

SHARP/Socle Technology PC3H710NIP1H
- MFG Part Number
- PC3H710NIP1H
- Available Quantity
- 70660 Pieces
- Reference Price
- USD 0.253792
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- SHARP/Socle Technology
- Brief Description
- PC3H71 OPTOISOLATOR TRANSISTOR SMD
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Optoisolators - Transistor, Photovoltaic Output
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- PC3H710NIP1H.pdf
PC3H710NIP1H Specifications
| Manufacturer Part Number | PC3H710NIP1H |
|---|---|
| Future Part Number | FT-PC3H710NIP1H |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | PC3H71 |
| PC3H710NIP1H Status (Lifecycle) | In Stock |
| Part Status | Active |
| Number of Channels | 1 |
| Voltage - Isolation | 2500Vrms |
| Current Transfer Ratio (Min) | 100% @ 500µA |
| Current Transfer Ratio (Max) | 700% @ 500µA |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 4µs, 3µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 80V |
| Current - Output / Channel | 500µA |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 10mA |
| Vce Saturation (Max) | 200mV |
| Operating Temperature | -30°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SOIC (0.173", 4.40mm Width) |
| Supplier Device Package | - |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| PC3H710NIP1H Weight | Contact Us |
| Replacement Part Number | PC3H710NIP1H-FT |
