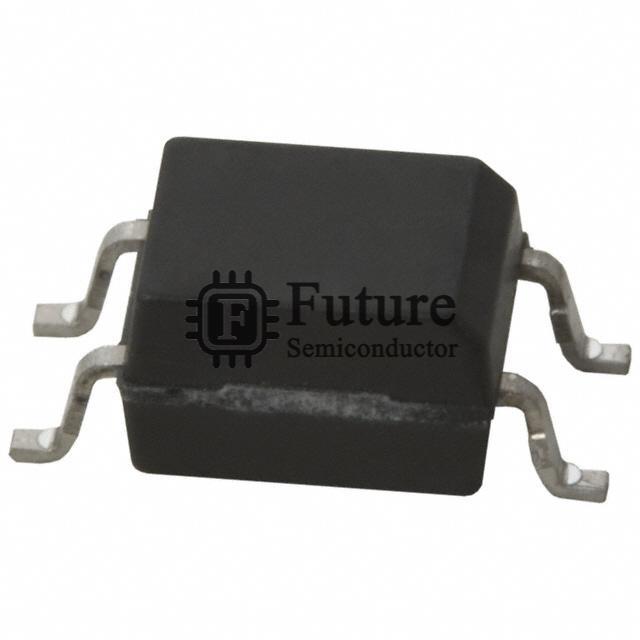

SHARP/Socle Technology PC367N2J000F

Name: PC367N2J000F
Brand: SHARP/Socle Technology
SKU: PC367N2J000F
Price: 0.265888 USD
Availability: InStock
Rating: 4.7 (466 reviews)

MFG Part Number: PC367N2J000F

Available Quantity: 95680 Pieces

Reference Price: USD 0.265888

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: SHARP/Socle Technology

Brief Description: - OPTOISO 3.75KV TRANS 4-MINI-FLAT

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Optoisolators - Transistor, Photovoltaic Output

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: PC367N2J000F.pdf

PC367N2J000F Specifications

Manufacturer Part Number	PC367N2J000F
Future Part Number	FT-PC367N2J000F
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
PC367N2J000F Status (Lifecycle)	In Stock
Part Status	Active
Number of Channels	1
Voltage - Isolation	3750Vrms
Current Transfer Ratio (Min)	200% @ 500µA
Current Transfer Ratio (Max)	400% @ 500µA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	4µs, 3µs
Input Type	DC
Output Type	Transistor
Voltage - Output (Max)	80V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	10mA
Vce Saturation (Max)	200mV
Operating Temperature	-30°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-Mini-Flat
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
PC367N2J000F Weight	Contact Us
Replacement Part Number	PC367N2J000F-FT
