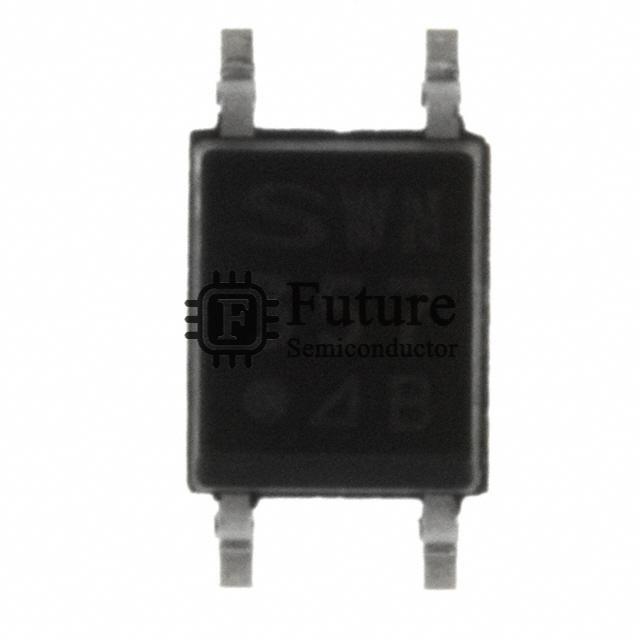

Sharp Microelectronics PC357N2TJ00F
- MFG Part Number
- PC357N2TJ00F
- Available Quantity
- 86550 Pieces
- Reference Price
- USD 0
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Sharp Microelectronics
- Brief Description
- - OPTOISO 3.75KV TRANS 4-MINI-FLAT
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Optoisolators - Transistor, Photovoltaic Output
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- PC357N2TJ00F.pdf
PC357N2TJ00F Specifications
| Manufacturer Part Number | PC357N2TJ00F |
|---|---|
| Future Part Number | FT-PC357N2TJ00F |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | - |
| PC357N2TJ00F Status (Lifecycle) | In Stock |
| Part Status | Obsolete |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 130% @ 5mA |
| Current Transfer Ratio (Max) | 260% @ 5mA |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 4µs, 3µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 80V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50mA |
| Vce Saturation (Max) | 200mV |
| Operating Temperature | -30°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-Mini-Flat |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| PC357N2TJ00F Weight | Contact Us |
| Replacement Part Number | PC357N2TJ00F-FT |
