Diodes Incorporated PAM8001XHR

Name: PAM8001XHR
Brand: Diodes Incorporated
SKU: PAM8001XHR
Availability: InStock
Rating: 4.6 (534 reviews)

MFG Part Number: PAM8001XHR

Available Quantity: 77560 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Diodes Incorporated

Brief Description: - IC AMP AUDIO 2W CLASS D 20UQFN

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Linear - Amplifiers - Audio

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: PAM8001XHR.pdf

Request Quotation for PAM8001XHR

Company Name

Contact Person

Phone Number

Address

Email

Message

PAM8001XHR Specifications

Manufacturer Part Number	PAM8001XHR
Future Part Number	FT-PAM8001XHR
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
PAM8001XHR Status (Lifecycle)	In Stock
Part Status	Obsolete
Type	Class D
Output Type	2-Channel (Stereo)
Max Output Power x Channels @ Load	2.8W x 2 @ 4 Ohm
Voltage - Supply	2.5V ~ 5.5V
Features	Depop, Short-Circuit and Thermal Protection
Mounting Type	Surface Mount
Operating Temperature	-20°C ~ 85°C (TA)

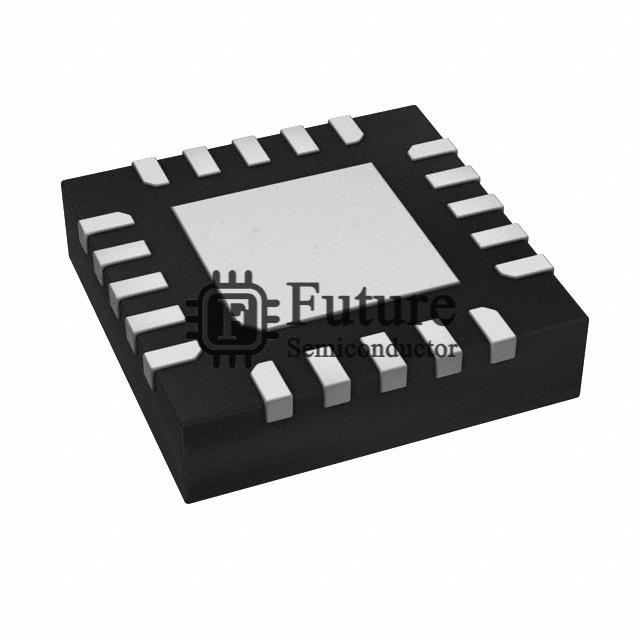

Supplier Device Package	20-QFN (3x3)
Package / Case	20-WFQFN Exposed Pad
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
PAM8001XHR Weight	Contact Us
Replacement Part Number	PAM8001XHR-FT
