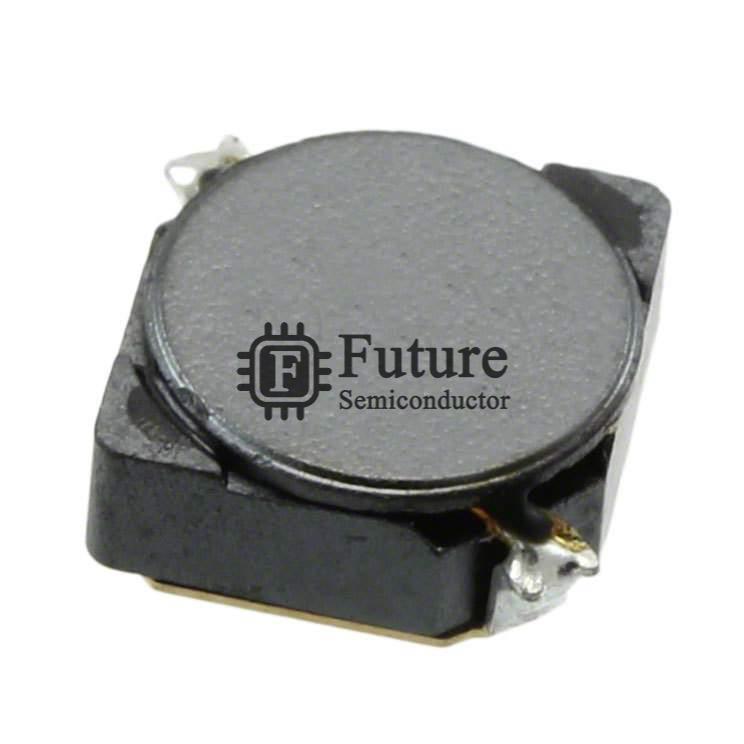

Pulse Electronics Power PA4301.684NLT

Name: PA4301.684NLT
Brand: Pulse Electronics Power
SKU: PA4301.684NLT
Price: 0.34992 USD
Availability: InStock
Rating: 4.9 (625 reviews)

MFG Part Number: PA4301.684NLT

Available Quantity: 53280 Pieces

Reference Price: USD 0.34992

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Pulse Electronics Power

Brief Description: PA4301.XXXNLT FIXED Inductors 680UH 193MA 3.51 OHM

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Fixed Inductors

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: PA4301.684NLT.pdf

Request Quotation for PA4301.684NLT

Company Name

Contact Person

Phone Number

Address

Email

Message

PA4301.684NLT Specifications

Manufacturer Part Number	PA4301.684NLT
Future Part Number	FT-PA4301.684NLT
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	PA4301.XXXNLT
PA4301.684NLT Status (Lifecycle)	In Stock
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	680µH
Tolerance	±20%
Current Rating	193mA
Current - Saturation	-
Shielding	Shielded
DC Resistance (DCR)	3.51 Ohm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	1kHz
Features	-
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.283" L x 0.283" W (7.20mm x 7.20mm)
Height - Seated (Max)	0.118" (3.00mm)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
PA4301.684NLT Weight	Contact Us
Replacement Part Number	PA4301.684NLT-FT
