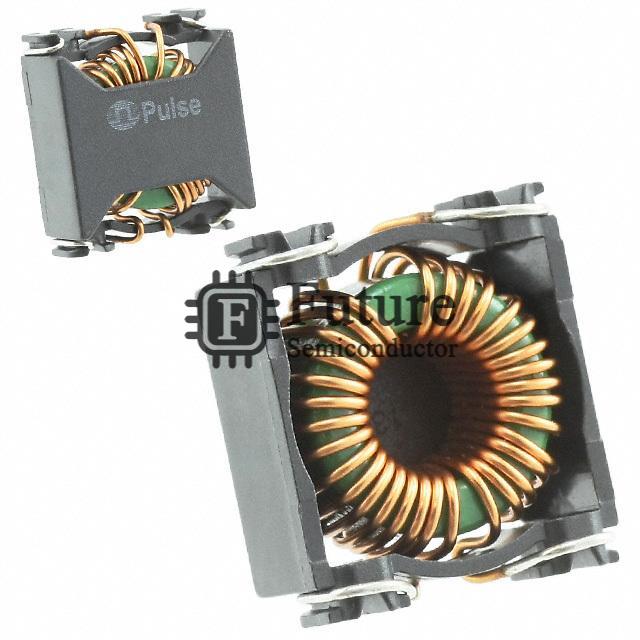

P0422NL Image

Pulse Electronics Power P0422NL

MFG Part Number
P0422NL
Available Quantity
19410 Pieces
Reference Price
USD 1.968
Our Price
We have a big discount, please contact us
Shipping Date
We can ship out today
Manufacturer
Pulse Electronics Power
Brief Description
- COMMON MODE CHOKE 4.7A 2LN SMD
Lead Free Status / RoHS Status
RoHS Compliant (Lead Free)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Date Code (D/C)
New
Product Category
Common Mode Chokes
Stock Resource
Franchised Distributor
Warranty
360 days quality guarantee
Datasheet
P0422NL.pdf
P0422NL Image

Request Quotation for P0422NL

Company Name
Contact Person
Phone Number
Address
Email
Message

P0422NL Specifications

Manufacturer Part Number P0422NL
Future Part Number FT-P0422NL
SPQ / MOQ Contact Us
Packing Material Reel/Tray/Tube/Others
Series -
P0422NL Status (Lifecycle) In Stock
Part Status Active
Filter Type Power Line
Number of Lines 2
Impedance @ Frequency -
Inductance @ Frequency -
Current Rating (Max) 4.7A
DC Resistance (DCR) (Max) 40 mOhm
Voltage Rating - DC -
Voltage Rating - AC -
Operating Temperature -40°C ~ 120°C
Ratings -
Approvals -
Features -
Mounting Type Surface Mount
Size / Dimension 0.770" L x 0.670" W (19.56mm x 17.02mm)
Height (Max) 0.390" (9.91mm)
Package / Case Horizontal, 4 PC Pad
Country of Origin USA/JAPAN/MALAYSIA/MEXICO/CN
P0422NL Weight Contact Us
Replacement Part Number P0422NL-FT
