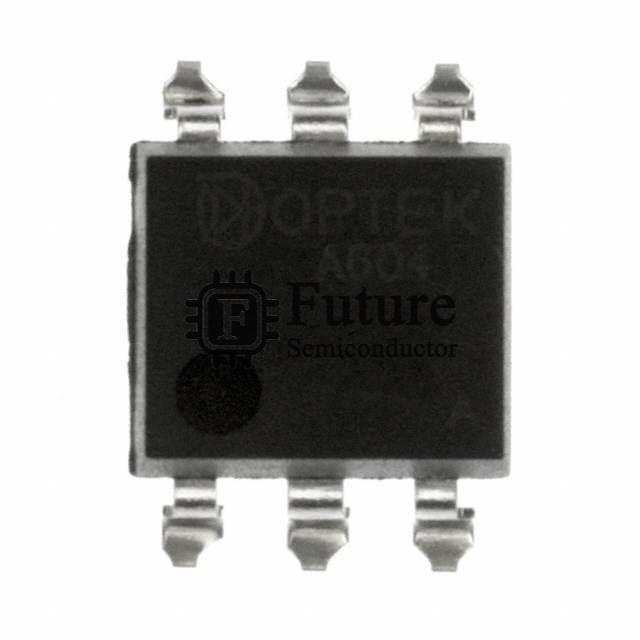

TT Electronics/Optek Technology OPIA6010ATUA

Name: OPIA6010ATUA
Brand: TT Electronics/Optek Technology
SKU: OPIA6010ATUA
Availability: InStock
Rating: 5.0 (767 reviews)

MFG Part Number: OPIA6010ATUA

Available Quantity: 40880 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: TT Electronics/Optek Technology

Brief Description: - OPTOISO 5KV TRANS W/BASE 6SMD

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Optoisolators - Transistor, Photovoltaic Output

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: OPIA6010ATUA.pdf

OPIA6010ATUA Specifications

Manufacturer Part Number	OPIA6010ATUA
Future Part Number	FT-OPIA6010ATUA
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
OPIA6010ATUA Status (Lifecycle)	In Stock
Part Status	Obsolete
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	60% @ 1mA
Current Transfer Ratio (Max)	600% @ 1mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	5µs, 4µs
Input Type	AC, DC
Output Type	Transistor with Base
Voltage - Output (Max)	60V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50mA
Vce Saturation (Max)	300mV
Operating Temperature	-55°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	6-SMD, Gull Wing
Supplier Device Package	6-SMD
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
OPIA6010ATUA Weight	Contact Us
Replacement Part Number	OPIA6010ATUA-FT
