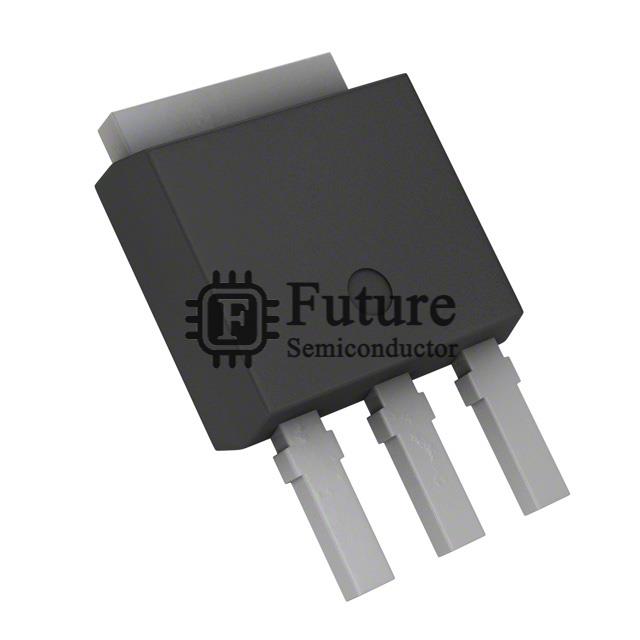

ON Semiconductor NTD60N02R-35G
- MFG Part Number
- NTD60N02R-35G
- Available Quantity
- 80180 Pieces
- Reference Price
- USD 0
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- ON Semiconductor
- Brief Description
- - MOSFET N-CH 25V 8.5A IPAK
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Transistors - FETs, MOSFETs - Single
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- NTD60N02R-35G.pdf
NTD60N02R-35G Specifications
| Manufacturer Part Number | NTD60N02R-35G |
|---|---|
| Future Part Number | FT-NTD60N02R-35G |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | - |
| NTD60N02R-35G Status (Lifecycle) | In Stock |
| Part Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25V |
| Current - Continuous Drain (Id) @ 25°C | 8.5A (Ta), 32A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 10.5 mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 14nC @ 4.5V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1330pF @ 20V |
| FET Feature | - |
| Power Dissipation (Max) | 1.25W (Ta), 58W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | I-PAK |
| Package / Case | TO-251-3 Stub Leads, IPak |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| NTD60N02R-35G Weight | Contact Us |
| Replacement Part Number | NTD60N02R-35G-FT |
