Home / Products / Power Supplies - Board Mount / DC DC Converters / NSD05-12S5

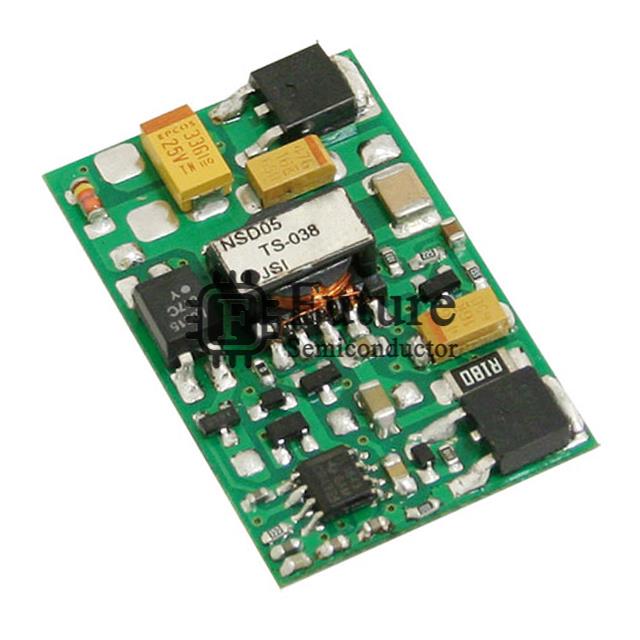

MEAN WELL USA Inc. NSD05-12S5
- MFG Part Number
- NSD05-12S5
- Available Quantity
- 28470 Pieces
- Reference Price
- USD 7.84
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- MEAN WELL USA Inc.
- Brief Description
- NSD05-S (5W) DC DC CONVERTER 5V 5W
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- DC DC Converters
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- NSD05-12S5.pdf
NSD05-12S5 Specifications
| Manufacturer Part Number | NSD05-12S5 |
|---|---|
| Future Part Number | FT-NSD05-12S5 |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | NSD05-S (5W) |
| NSD05-12S5 Status (Lifecycle) | In Stock |
| Part Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9.2V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1A |
| Power (Watts) | 5W |
| Voltage - Isolation | 1000V |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OVP, SCP |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Efficiency | 76% |
| Mounting Type | Through Hole |
| Package / Case | 5-DIP Module |
| Size / Dimension | 1.60" L x 1.00" W x 0.33" H (40.6mm x 25.4mm x 8.3mm) |
| Supplier Device Package | - |
| Control Features | - |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| NSD05-12S5 Weight | Contact Us |
| Replacement Part Number | NSD05-12S5-FT |
