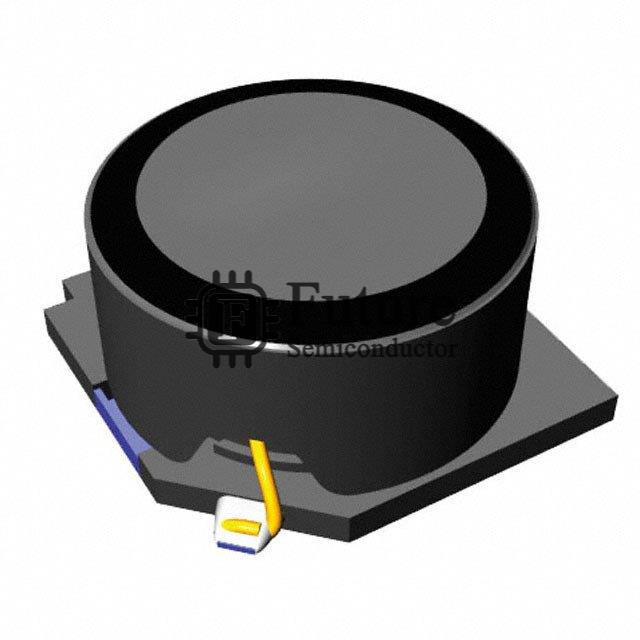

Taiyo Yuden NS12555T220MN

Name: NS12555T220MN
Brand: Taiyo Yuden
SKU: NS12555T220MN
Price: 0.50832 USD
Availability: InStock
Rating: 4.9 (228 reviews)

MFG Part Number: NS12555T220MN

Available Quantity: 89550 Pieces

Reference Price: USD 0.50832

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Taiyo Yuden

Brief Description: NS FIXED Inductors 22UH 3.81A 35.64 MOHM

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Fixed Inductors

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: NS12555T220MN.pdf

Request Quotation for NS12555T220MN

Company Name

Contact Person

Phone Number

Address

Email

Message

NS12555T220MN Specifications

Manufacturer Part Number	NS12555T220MN
Future Part Number	FT-NS12555T220MN
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	NS
NS12555T220MN Status (Lifecycle)	In Stock
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	22µH
Tolerance	±20%
Current Rating	3.81A
Current - Saturation	3.2A
Shielding	Shielded
DC Resistance (DCR)	35.64 mOhm Max
Q @ Freq	-
Frequency - Self Resonant	13.2MHz
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	100kHz
Features	-
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max)	0.230" (5.85mm)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
NS12555T220MN Weight	Contact Us
Replacement Part Number	NS12555T220MN-FT
