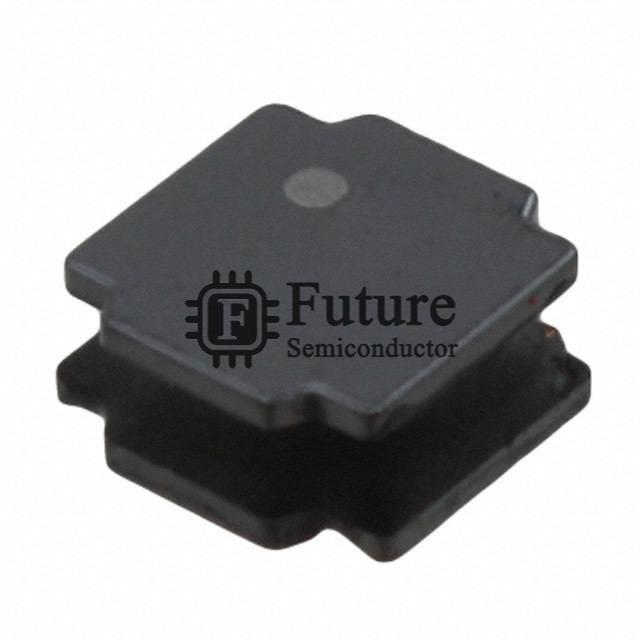

Taiyo Yuden NR8040T220M

Name: NR8040T220M
Brand: Taiyo Yuden
SKU: NR8040T220M
Price: 0.14256 USD
Availability: InStock
Rating: 4.6 (692 reviews)

MFG Part Number: NR8040T220M

Available Quantity: 17620 Pieces

Reference Price: USD 0.14256

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Taiyo Yuden

Brief Description: NR FIXED Inductors 22UH 2.2A 85.8 MOHM

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Fixed Inductors

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: NR8040T220M.pdf

Request Quotation for NR8040T220M

Company Name

Contact Person

Phone Number

Address

Email

Message

NR8040T220M Specifications

Manufacturer Part Number	NR8040T220M
Future Part Number	FT-NR8040T220M
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	NR
NR8040T220M Status (Lifecycle)	In Stock
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	22µH
Tolerance	±20%
Current Rating	2.2A
Current - Saturation	2.2A
Shielding	Shielded
DC Resistance (DCR)	85.8 mOhm Max
Q @ Freq	-
Frequency - Self Resonant	13MHz
Ratings	-
Operating Temperature	-25°C ~ 120°C
Inductance Frequency - Test	100kHz
Features	-
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max)	0.157" (4.00mm)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
NR8040T220M Weight	Contact Us
Replacement Part Number	NR8040T220M-FT
