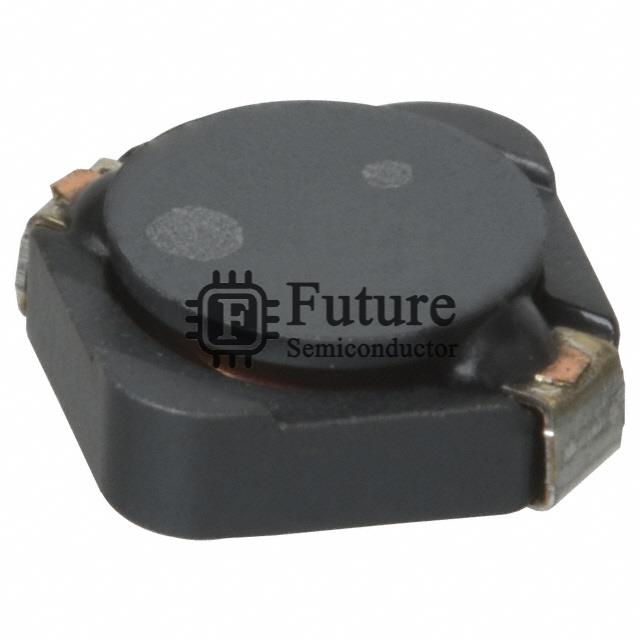

Taiyo Yuden NP04SB6R8N

Name: NP04SB6R8N
Brand: Taiyo Yuden
SKU: NP04SB6R8N
Availability: InStock
Rating: 4.6 (592 reviews)

MFG Part Number: NP04SB6R8N

Available Quantity: 39530 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Taiyo Yuden

Brief Description: N, P Type FIXED Inductors 6.8UH 2A 53 MOHM SMD

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Fixed Inductors

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: NP04SB6R8N.pdf

NP04SB6R8N Specifications

Manufacturer Part Number	NP04SB6R8N
Future Part Number	FT-NP04SB6R8N
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	N, P Type
NP04SB6R8N Status (Lifecycle)	In Stock
Part Status	Obsolete
Type	-
Material - Core	Ferrite
Inductance	6.8µH
Tolerance	±30%
Current Rating	2A
Current - Saturation	1.05A
Shielding	Shielded
DC Resistance (DCR)	53 mOhm Max
Q @ Freq	-
Frequency - Self Resonant	27MHz
Ratings	-
Operating Temperature	-25°C ~ 105°C
Inductance Frequency - Test	1kHz
Features	-
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max)	0.079" (2.00mm)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
NP04SB6R8N Weight	Contact Us
Replacement Part Number	NP04SB6R8N-FT
