Home / Products / Power Supplies - Board Mount / DC DC Converters / NMA1505DC

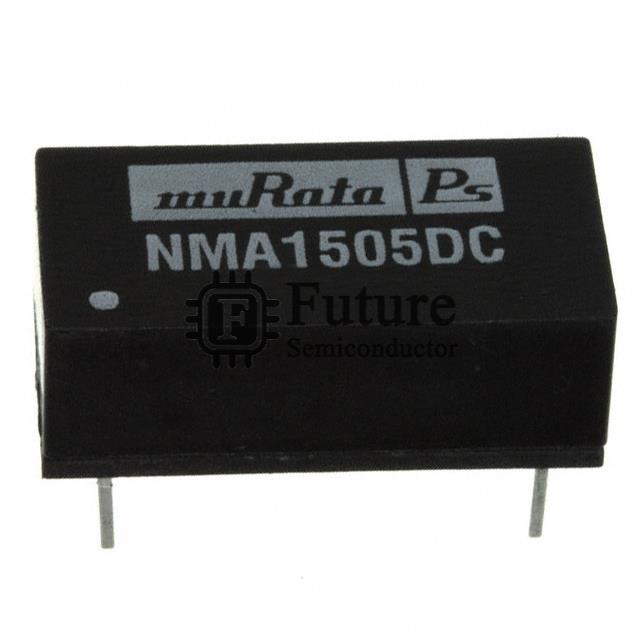

Murata Power Solutions Inc. NMA1505DC
- MFG Part Number
- NMA1505DC
- Available Quantity
- 92260 Pieces
- Reference Price
- USD 7.58432
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Murata Power Solutions Inc.
- Brief Description
- NMA (1W) DC DC CONVERTER /-5V 1W
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- DC DC Converters
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- NMA1505DC.pdf
NMA1505DC Specifications
| Manufacturer Part Number | NMA1505DC |
|---|---|
| Future Part Number | FT-NMA1505DC |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | NMA (1W) |
| NMA1505DC Status (Lifecycle) | In Stock |
| Part Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 13.5V |
| Voltage - Input (Max) | 16.5V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | -5V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 100mA, 100mA |
| Power (Watts) | 1W |
| Voltage - Isolation | 1kV |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 71% |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP Module, 6 Leads |
| Size / Dimension | 0.77" L x 0.39" W x 0.27" H (19.6mm x 9.9mm x 6.9mm) |
| Supplier Device Package | - |
| Control Features | - |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| NMA1505DC Weight | Contact Us |
| Replacement Part Number | NMA1505DC-FT |
