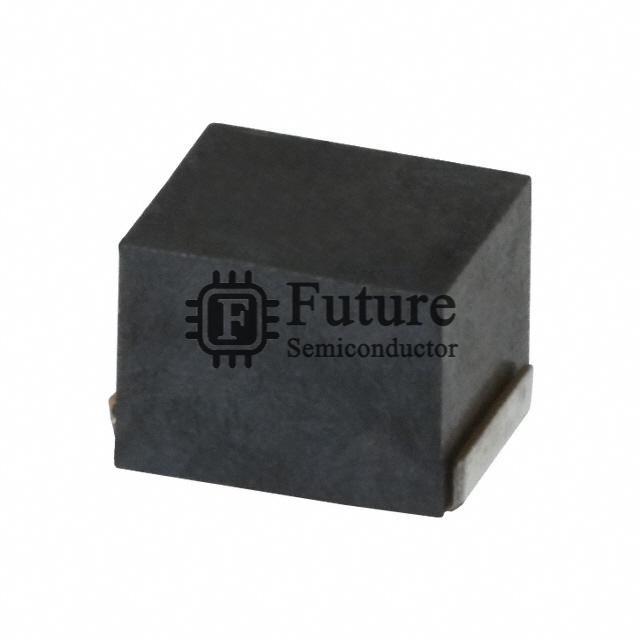

TDK Corporation NLV32T-271J-PF

Name: NLV32T-271J-PF
Brand: TDK Corporation
SKU: NLV32T-271J-PF
Price: 0.077616 USD
Availability: InStock
Rating: 4.6 (224 reviews)

MFG Part Number: NLV32T-271J-PF

Available Quantity: 89470 Pieces

Reference Price: USD 0.077616

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: TDK Corporation

Brief Description: NLV-PF FIXED Inductors 270UH 45MA 28 OHM SMD

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Fixed Inductors

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: NLV32T-271J-PF.pdf

Request Quotation for NLV32T-271J-PF

Company Name

Contact Person

Phone Number

Address

Email

Message

NLV32T-271J-PF Specifications

Manufacturer Part Number	NLV32T-271J-PF
Future Part Number	FT-NLV32T-271J-PF
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	NLV-PF
NLV32T-271J-PF Status (Lifecycle)	In Stock
Part Status	Not For New Designs
Type	Wirewound
Material - Core	Ferrite
Inductance	270µH
Tolerance	±5%
Current Rating	45mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	28 Ohm Max
Q @ Freq	20 @ 796kHz
Frequency - Self Resonant	6MHz
Ratings	-
Operating Temperature	-40°C ~ 105°C
Inductance Frequency - Test	796kHz
Features	-
Mounting Type	Surface Mount
Package / Case	1210 (3225 Metric)
Supplier Device Package	1210
Size / Dimension	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)	0.094" (2.40mm)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
NLV32T-271J-PF Weight	Contact Us
Replacement Part Number	NLV32T-271J-PF-FT
