Home / Products / Optoelectronics / Display Modules - LCD, OLED Character and Numeric / NHD-0420CW-AR3

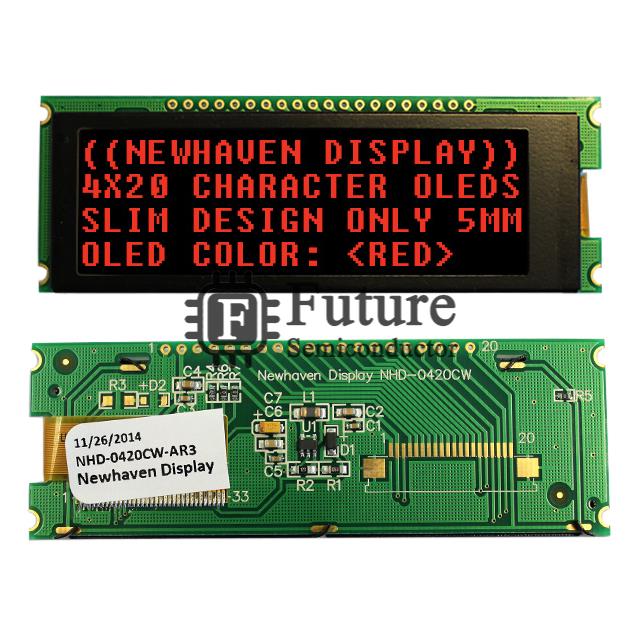

Newhaven Display Intl NHD-0420CW-AR3
- MFG Part Number
- NHD-0420CW-AR3
- Available Quantity
- 87740 Pieces
- Reference Price
- USD 24.856
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Newhaven Display Intl
- Brief Description
- - OLED MOD CHAR 4X20
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Display Modules - LCD, OLED Character and Numeric
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- NHD-0420CW-AR3.pdf
NHD-0420CW-AR3 Specifications
| Manufacturer Part Number | NHD-0420CW-AR3 |
|---|---|
| Future Part Number | FT-NHD-0420CW-AR3 |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | - |
| NHD-0420CW-AR3 Status (Lifecycle) | In Stock |
| Part Status | Obsolete |
| Number of Characters | 80 |
| Display Format | 20 x 4 |
| Character Format | 5 x 8 Dots |
| Display Type | OLED |
| Display Mode | Passive |
| Character Size | 4.77mm H x 2.97mm W |
| Outline L x W x H | 92.00mm x 31.50mm x 2.50mm |
| Viewing Area | 72.42mm L x 22.82mm W |
| Backlight | - |
| Voltage - Supply | 2.4V ~ 5.5V |
| Dot Size | 0.57mm W x 0.57mm H |
| Interface | Parallel, 8-Bit, I²C, SPI |
| Operating Temperature | -40°C ~ 85°C |
| Text Color | Red |
| Background Color | Black |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| NHD-0420CW-AR3 Weight | Contact Us |
| Replacement Part Number | NHD-0420CW-AR3-FT |
