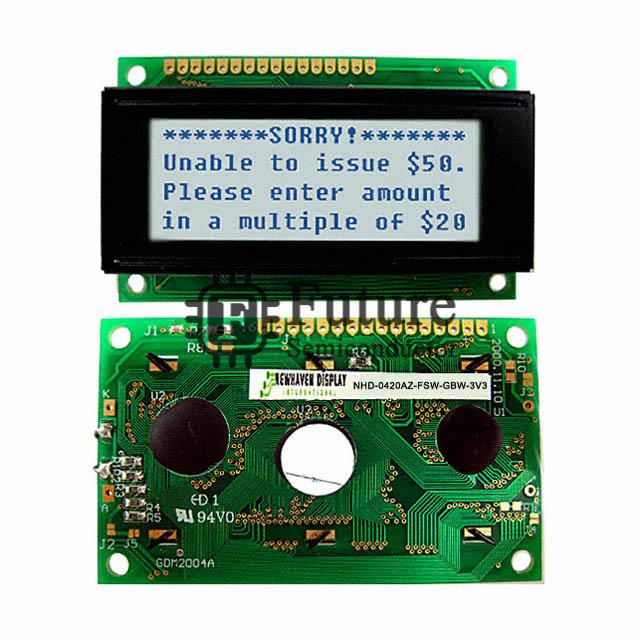

Newhaven Display Intl NHD-0420AZ-FSW-GBW-3V3

Name: NHD-0420AZ-FSW-GBW-3V3
Brand: Newhaven Display Intl
SKU: NHD-0420AZ-FSW-GBW-3V3
Availability: InStock
Rating: 4.6 (336 reviews)

MFG Part Number: NHD-0420AZ-FSW-GBW-3V3

Available Quantity: 79560 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Newhaven Display Intl

Brief Description: - LCD MOD CHAR 4X20 TRANSFL

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Display Modules - LCD, OLED Character and Numeric

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: NHD-0420AZ-FSW-GBW-3V3.pdf

Request Quotation for NHD-0420AZ-FSW-GBW-3V3

Company Name

Contact Person

Phone Number

Address

Email

Message

NHD-0420AZ-FSW-GBW-3V3 Specifications

Manufacturer Part Number	NHD-0420AZ-FSW-GBW-3V3
Future Part Number	FT-NHD-0420AZ-FSW-GBW-3V3
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
NHD-0420AZ-FSW-GBW-3V3 Status (Lifecycle)	In Stock
Part Status	Obsolete
Number of Characters	80
Display Format	20 x 4
Character Format	5 x 8 Dots
Display Type	STN - Super-Twisted Nematic
Display Mode	Transflective
Character Size	4.03mm H x 2.30mm W
Outline L x W x H	77.00mm x 47.00mm x 14.50mm
Viewing Area	60.00mm L x 22.00mm W
Backlight	LED - White
Voltage - Supply	2.7V ~ 3.3V
Dot Size	0.42mm W x 0.46mm H
Interface	Parallel
Operating Temperature	-20°C ~ 70°C
Text Color	Gray
Background Color	White
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
NHD-0420AZ-FSW-GBW-3V3 Weight	Contact Us
Replacement Part Number	NHD-0420AZ-FSW-GBW-3V3-FT
