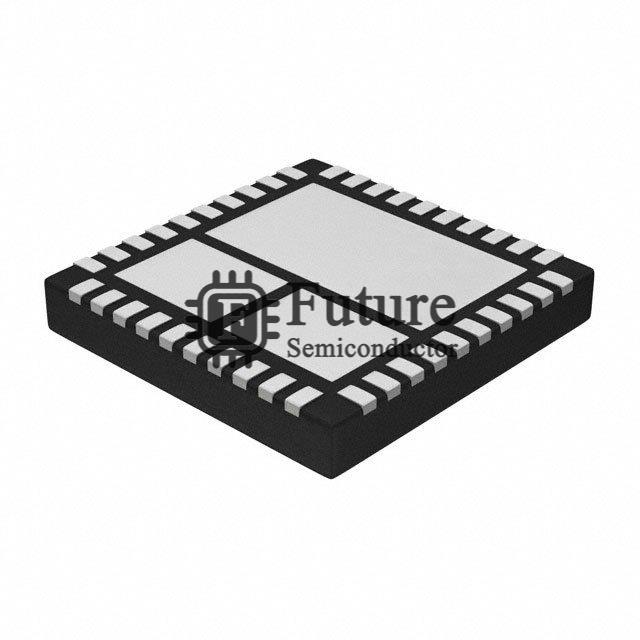

ON Semiconductor NCP5338MNR2G

Name: NCP5338MNR2G
Brand: ON Semiconductor
SKU: NCP5338MNR2G
Availability: InStock
Rating: 4.6 (745 reviews)

MFG Part Number: NCP5338MNR2G

Available Quantity: 75380 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: ON Semiconductor

Brief Description: - IC MOSFET DVR HI/LO MOSF 40QFN

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: PMIC - Full, Half-Bridge Drivers

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: NCP5338MNR2G.pdf

Request Quotation for NCP5338MNR2G

Company Name

Contact Person

Phone Number

Address

Email

Message

NCP5338MNR2G Specifications

Manufacturer Part Number	NCP5338MNR2G
Future Part Number	FT-NCP5338MNR2G
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
NCP5338MNR2G Status (Lifecycle)	In Stock
Part Status	Obsolete
Output Configuration	Half Bridge
Applications	Buck Converters
Interface	PWM
Load Type	Inductive
Technology	Power MOSFET
Rds On (Typ)	-
Current - Output / Channel	40A
Current - Peak Output	-
Voltage - Supply	4.5V ~ 5.5V
Voltage - Load	4.5V ~ 20V
Operating Temperature	-40°C ~ 150°C (TJ)
Features	Bootstrap Circuit
Fault Protection	Over Temperature, UVLO
Mounting Type	Surface Mount
Package / Case	40-VFQFN Exposed Pad
Supplier Device Package	40-QFN (6x6)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
NCP5338MNR2G Weight	Contact Us
Replacement Part Number	NCP5338MNR2G-FT
