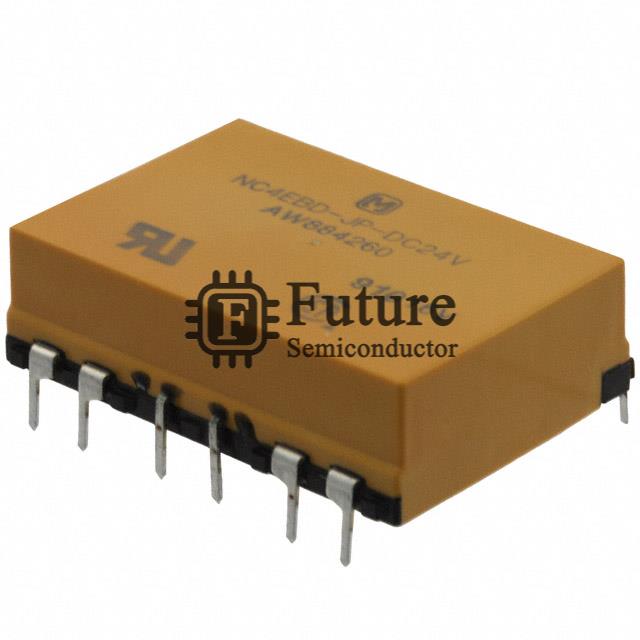

Panasonic Electric Works NC4EBD-JP-DC24V

Name: NC4EBD-JP-DC24V
Brand: Panasonic Electric Works
SKU: NC4EBD-JP-DC24V
Price: 15.48 USD
Availability: InStock
Rating: 4.7 (672 reviews)

MFG Part Number: NC4EBD-JP-DC24V

Available Quantity: 61950 Pieces

Reference Price: USD 15.48

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Panasonic Electric Works

Brief Description: NC RELAY GEN PURPOSE 4PDT 5A 24V

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Power Relays, Over 2 Amps

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: NC4EBD-JP-DC24V.pdf

Request Quotation for NC4EBD-JP-DC24V

Company Name

Contact Person

Phone Number

Address

Email

Message

NC4EBD-JP-DC24V Specifications

Manufacturer Part Number	NC4EBD-JP-DC24V
Future Part Number	FT-NC4EBD-JP-DC24V
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	NC
NC4EBD-JP-DC24V Status (Lifecycle)	In Stock
Part Status	Active
Mounting Type	Through Hole
Coil Voltage	24VDC
Contact Form	4PDT (4 Form C)
Contact Rating (Current)	5A
Switching Voltage	250VAC - Max
Coil Current	30.0mA
Coil Type	Non Latching
Features	Sealed - Fully
Termination Style	PC Pin
Must Operate Voltage	19.2 VDC
Must Release Voltage	2.4 VDC
Operate Time	20ms
Release Time	10ms
Operating Temperature	-40°C ~ 55°C
Contact Material	Silver Nickel (AgNi)
Relay Type	General Purpose
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
NC4EBD-JP-DC24V Weight	Contact Us
Replacement Part Number	NC4EBD-JP-DC24V-FT
