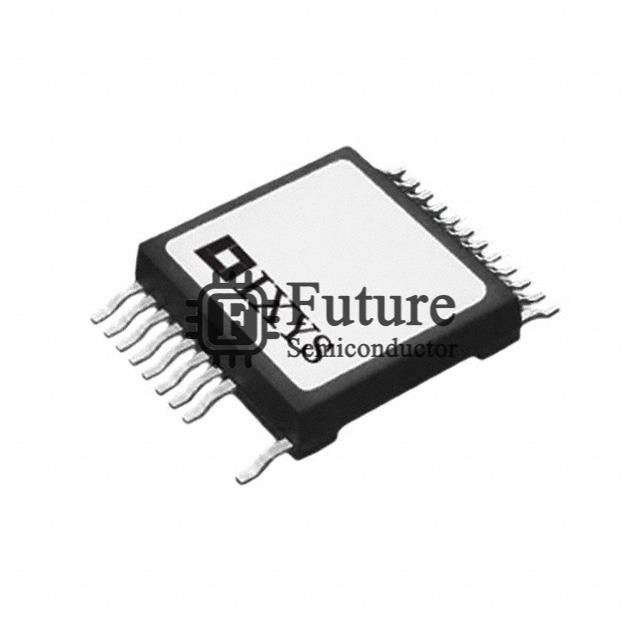

IXYS MMIX1F360N15T2

Name: MMIX1F360N15T2
Brand: IXYS
SKU: MMIX1F360N15T2
Price: 26.5364 USD
Availability: InStock
Rating: 4.5 (457 reviews)

MFG Part Number: MMIX1F360N15T2

Available Quantity: 86310 Pieces

Reference Price: USD 26.5364

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: IXYS

Brief Description: GigaMOS™, TrenchT2™ MOSFET N-CH 150V 235A

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Transistors - FETs, MOSFETs - Single

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: MMIX1F360N15T2.pdf

MMIX1F360N15T2 Specifications

Manufacturer Part Number	MMIX1F360N15T2
Future Part Number	FT-MMIX1F360N15T2
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	GigaMOS™, TrenchT2™
MMIX1F360N15T2 Status (Lifecycle)	In Stock
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	150V
Current - Continuous Drain (Id) @ 25°C	235A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	4.4 mOhm @ 100A, 10V
Vgs(th) (Max) @ Id	5V @ 8mA
Gate Charge (Qg) (Max) @ Vgs	715nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	47500pF @ 25V
FET Feature	-
Power Dissipation (Max)	680W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	24-SMPD
Package / Case	24-PowerSMD, 21 Leads
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
MMIX1F360N15T2 Weight	Contact Us
Replacement Part Number	MMIX1F360N15T2-FT
