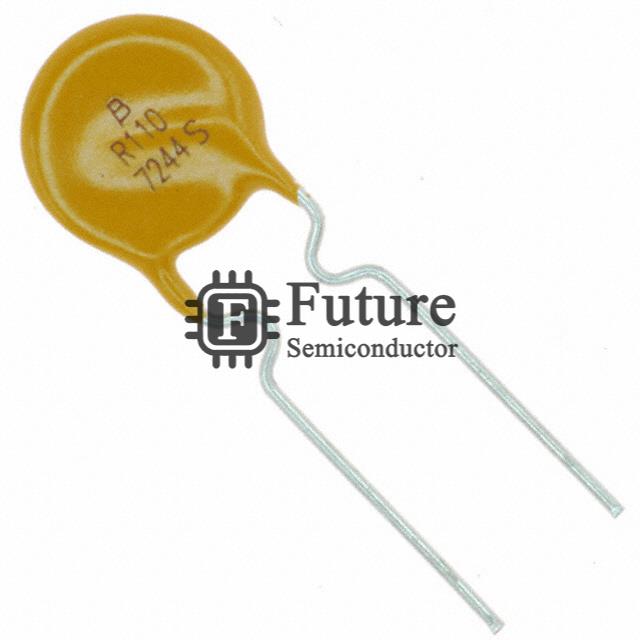

Home / Products / Circuit Protection / PTC Resettable Fuses / MF-R110-2
Manufacturer Part Number | MF-R110-2 |
---|---|
Future Part Number | FT-MF-R110-2 |
SPQ / MOQ | Contact Us |
Packing Material | Reel/Tray/Tube/Others |
Series | Multifuse®, MF-R |
MF-R110-2 Status (Lifecycle) | In Stock |
Part Status | Active |
Type | Polymeric |
Voltage - Max | 30V |
Current - Max | 40A |
Current - Hold (Ih) (Max) | 1.1A |
Current - Trip (It) | 2.2A |
Time to Trip | 6.6s |
Resistance - Initial (Ri) (Min) | 100 mOhms |
Resistance - Post Trip (R1) (Max) | 270 mOhms |
Resistance - 25°C (Typ) | - |
Operating Temperature | -40°C ~ 85°C |
Ratings | - |
Mounting Type | Through Hole |
Package / Case | Radial, Disc |
Size / Dimension | 0.350" Dia x 0.118" T (8.90mm x 3.00mm) |
Height - Seated (Max) | 0.551" (14.00mm) |
Thickness (Max) | - |
Lead Spacing | 0.201" (5.10mm) |
Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
MF-R110-2 Weight | Contact Us |
Replacement Part Number | MF-R110-2-FT |
